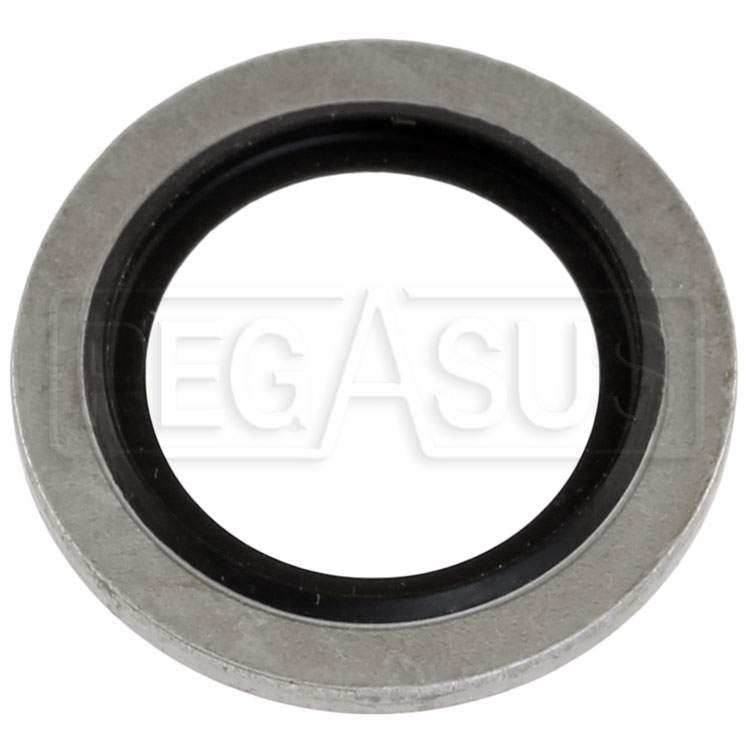

Dowty Sealing Washer for BSP Ports

Click for a larger picture of Dowty Sealing Washer for BSP Ports
Click for a larger picture of Dowty Sealing Washer for BSP Ports
View Catalog Page in PDF format

If your BSP fitting or port does not have a sealing flare or O-ring chamfer, you should use a Dowty Sealing Washer to seal the connection at the face of the female port.

Dowty Washers are comprised of a flanged nitrile (NBR) rubber insert bonded to the inside of a thick, zinc-plated steel washer. The rubber insert is molded to stand slightly proud of each side of the washer to ensure a good seal. The washer prevents the seal from getting crushed or extruding outwards, which makes them re-usable. Fluid pressure inside the joint simply forces the lip of the rubber insert tighter against the sealing surfaces. Recommended maximum working pressure* 2250 psi. Operating temperature range -4°F to 230°F (-20°C to 110°C).

If your male fitting has a concave flare at the end and the female has a matching convex flare, no sealing washer should be used. If the female port has a chamfer, use one of our BSP O-Ring Seals (Part No. 3243-Size) instead.

Note: BSP nomenclature can be confusing because the nominal size refers to the inside diameter of a cast iron pipe, not the outside diameter of the threads. If you are not sure what size you need, check in our Threaded Fitting Guide.

Dowty Sealing Washer Dimensions
BSP SizeIDODThicknessBurst Pressure*
1/8 BSP 0.38" 0.60" 0.08" 21,465 psi
1/4 BSP 0.51" 0.80" 0.08" 22,335 psi
3/8 BSP 0.66" 0.94" 0.08" 17,839 psi
1/2 BSP 0.84" 1.13" 0.09" 16,244 psi
5/8 BSP 0.91" 1.25" 0.09" 17,984 psi
3/4 BSP 1.07" 1.37" 0.09" 15,228 psi
1" BSP 1.33" 1.69" 0.09" 11,312 psi

* Recommended working pressure is based on a 5 to 1 safety margin.

Enter desired order quantities below, then click the "Add selected quantities to cart" button.

Order Qty
Part No.
Desc.
Price
Status

3240-1/8 BSP
Condition: New
SKU: 47712

Dowty Sealing Washer for 1/8 BSP Ports (0.38" ID)

1 to 9: $1.79

10 to 99: $1.59

100 & up: $1.39

In Stock

3240-1/4 BSP
Condition: New
SKU: 47711

Dowty Sealing Washer for 1/4 BSP Ports (0.51" ID)

1 to 9: $1.79

10 to 99: $1.59

100 & up: $1.39

In Stock

3240-3/8 BSP
Condition: New
SKU: 28638

Dowty Sealing Washer for 3/8 BSP Ports (0.66" ID)

1 to 9: $1.99

10 to 99: $1.77

100 & up: $1.55

In Stock

3240-1/2 BSP
Condition: New
SKU: 28637

Dowty Sealing Washer for 1/2 BSP Ports (0.84" ID)

1 to 9: $2.49

10 to 99: $2.22

100 & up: $1.95

In Stock

3240-5/8 BSP
Condition: New
SKU: 28639

Dowty Sealing Washer for 5/8 BSP Ports (0.91" ID)

1 to 9: $2.99

10 to 99: $2.67

100 & up: $2.35

In Stock

3240-3/4 BSP
Condition: New
SKU: 43993

Dowty Sealing Washer for 3/4 BSP Ports (1.07" ID)

1 to 7: $3.99

8 to 59: $3.58

60 to 499: $3.16

500 & up: call

In Stock

3240-1.00 BSP
Condition: New
SKU: 80772

Dowty Sealing Washer for 1" BSP Ports (1.33" ID)

1 to 7: $4.49

8 to 59: $4.03

60 & up: $3.57

In Stock
