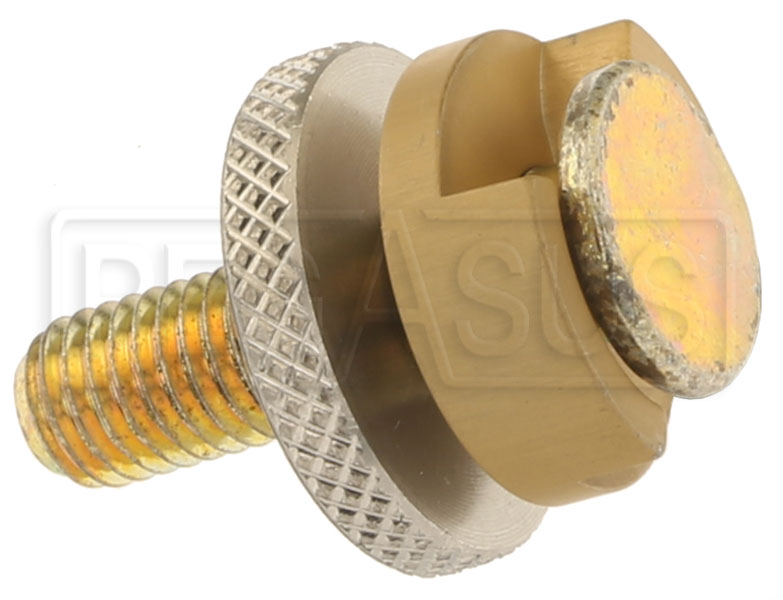

Threaded Stud Track Connector, M10 x 1.50

Click for a larger picture of Threaded Stud Track Connector, M10 x 1.50

This special anchor assembly installs quickly and easily into our E-Track (sold separately) to put a threaded stud anywhere you want it. Removes just as easily for repositioning whenever you want.

To install, loosen the knurled ring to allow the spacer to move about 1/4" away from the stud head. Slip the head into the E-Track slot and drop the spacer into the slot. Tighten the knurled ring to draw the head against the inside of the E-Track. To remove, simply loosen the knurled ring until you can tip the stud out of the slot.

Works with E-Track, A-Track, or VersaTie rails. Great for anchoring shelves, workbenches, tire chocks, or anything that needs to be held securely but may need to be moved in the future.

This fitting is rated for 5000 pounds in tension, or 2000 pounds in shear. The ultimate strength of the fitting and track assembly depends on installation. Steel stud has M10x1.50 metric threads. Measures 1.5" long overall; projects approximately 1" from E-Track, with about 0.75" of threads exposed when installed. Sold individually.

Part No.
Stock Status

Condition: New

In Stock
