|This item qualifies for FREE Shipping in the continental United States!|
These universal dry sump tanks can be disassembled for easy and thorough cleaning. Be sure to clean them before installation to remove all manufacturing and packing scrap.
The vent fittings on the top surface are threaded with 1/2 NPT female ports. Right angle barbed fittings are furnished for 5/8" I.D. hose. Connect the side vent fitting to the valve cover breather vent. The center vent is for air outlet to your catch tank. Measures 9 1/2" diameter x 16" high (less filler cap and vent fittings). Holds approximately 9.5 quarts when filled to a level slightly below the baffle.

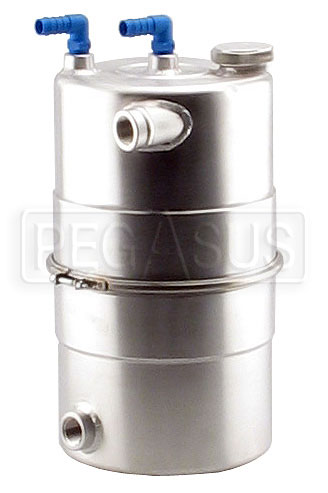

Note: Part No. 1212 (the 8.25" dia. version) is shown in the photo.
