Replacement Cap for Large AP Reservoirs #'s 3565, 3566

Click for a larger picture of Replacement Cap for Large AP Reservoirs #'s 3565, 3566
View Catalog Page in PDF format

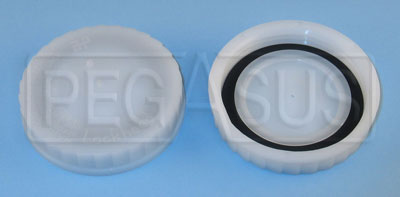

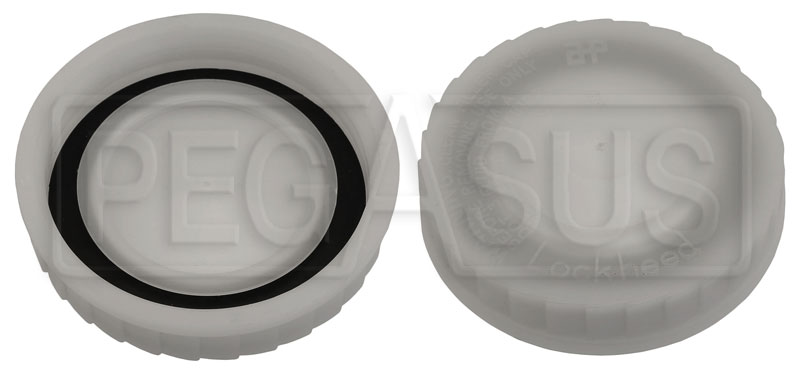

Sold individually (two are pictured to show top and bottom views). This plastic cap fits the family of large brake fluid reservoirs from AP Racing / Lockheed (2.6" / 66mm and 2.85" / 73mm body OD) including our Part Nos. 3565 and 3566. 3 1/2" OD, 3 1/8" thread diameter. This cap is designed to use a gasket (included) and will not work with a moisture barrier diaphragm without modification. Does not fit any other brand.

Fits AP Racing reservoirs CP2293-141 (offset 7/16-20 thread), CP4342-372 (single push-on outlet), CP4342-355 (dual push-on outlet), and CP4623-8 (offset M12 thread). Can also be used on CP2293-69, CP2293-85, CP2293-143, and CP4623-7 versions by either removing the moisture barrier from the reservoir or removing the gasket and retainer from the cap.

Qty
Part No.
Price
Stock Status
3570

Condition: New

$22.79
In Stock
