Brand: Fuel Safe Fuel Cells
| This item qualifies for FREE Shipping in the continental United States! |

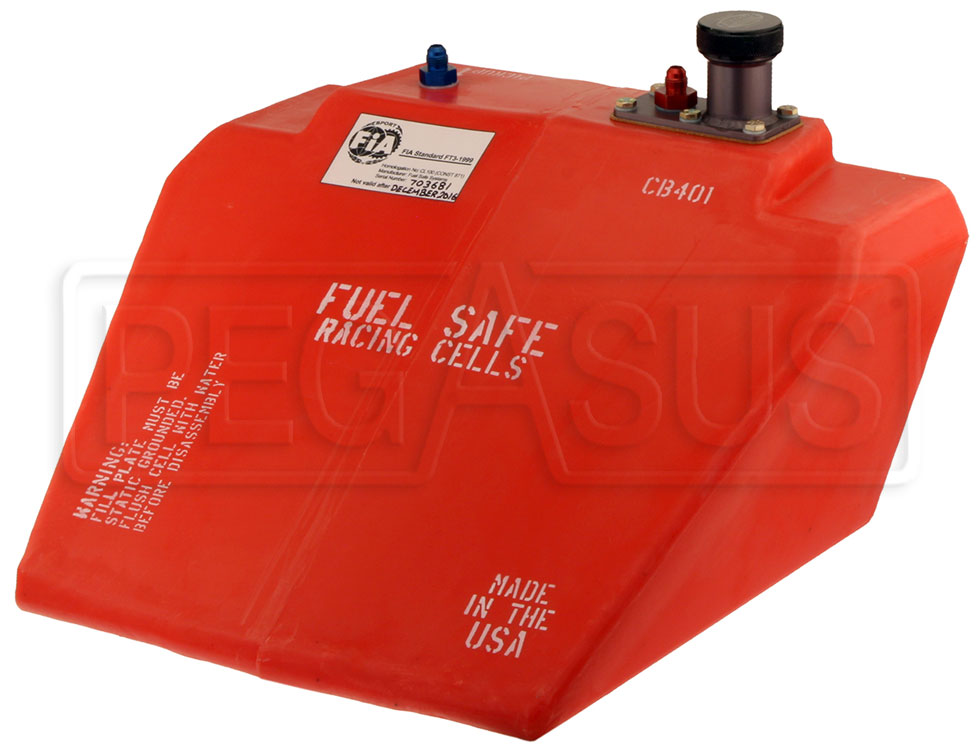

This FIA FT-3 approved fuel cell is made of semi-rigid rotary-molded rubber, which makes it much more economical than most other cells. The 6AN outlet fitting, 6AN vent fitting, and filler neck are all on the top surface of the cell (outlet on driver's right, vent and filler on driver's left). The rear of the cell has a large oval access plate, so you can relocate the outlet to the rear if needed. The threaded filler cap features a built-in dipstick for easy monitoring of the fuel level. The top is notched on both sides to allow clearance for a shift linkage or frame rails.
Length, front edge to back wall: 15 1/8"
Width at bottom: 13 15/16"
Width at widest point: 18 11/16"
Height at widest point: 7 1/2"
Height (less fittings and fill neck): 9 7/8"
Shifter notch depth: 1"
Width of top surface (between shifter notches): 13"
Depth of top surface (front-to-back): 3 7/16"
A CB401 Aluminum Container is sold separately (Part No. FS ACCB401).
Note: FIA regulations specify that the FT3 rating expires after 5 years. In order to provide you with the maximum service life, these cells will not be available from stock. They are available by Special Order only. Please allow a minimum of 4 weeks lead time.
