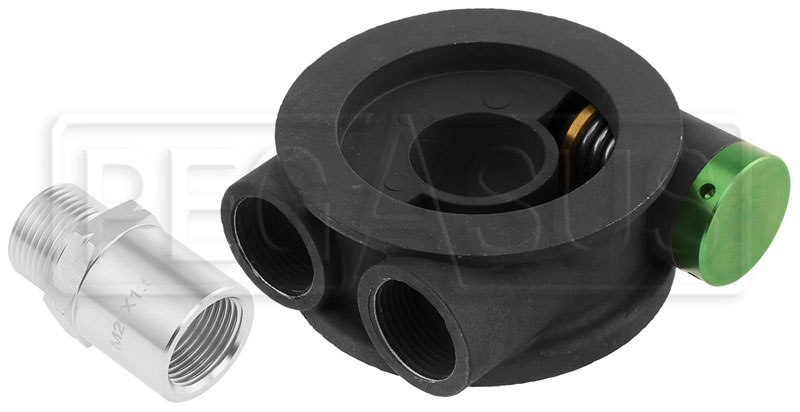

Setrab M20 x 1.5 Oil Filter Sandwich Plate w/ Thermostat

Click for a larger picture of Setrab M20 x 1.5 Oil Filter Sandwich Plate w/ Thermostat
View Catalog Page in PDF format

Brand: Setrab Oil Coolers

A pressure-relieving bypass valve in your sandwich plate helps to avoid pressure spikes from cold oil, but a thermostat valve provides more accurate control.

Setrab sandwich plates have M22 female ports to accept any Setrab M22 O-Ring Port Adapter Fittings (sold separately). This cast aluminum plate has a 20x1.5mm filter thread and a 2 1/2 inch O-ring diameter. The built-in thermostat allows cold oil to bypass your oil cooler. When the oil temperature reaches 180°F / 82°C (+/- 10°F or +/- 3°C), the thermostat closes to force all of the oil to go through the cooler.

The thickness of the plate is 1 inch so be sure to check for filter clearance.

Part No.
Stock Status

Condition: New

In Stock
