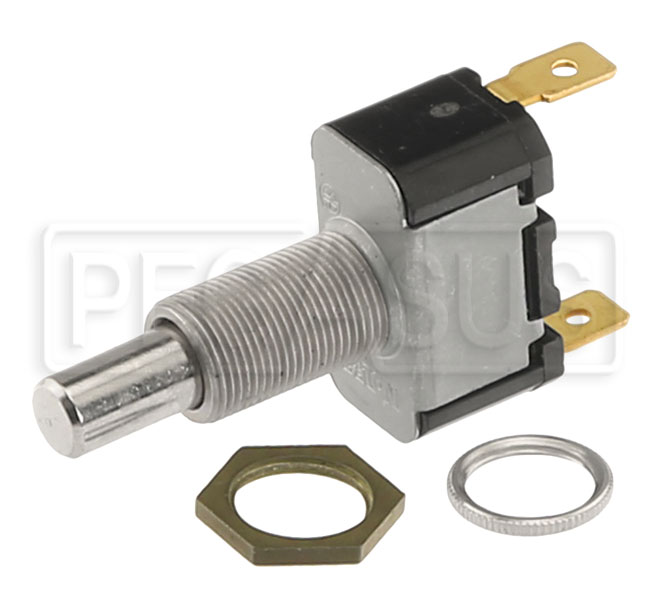

Push Button Switch, Momentary On, Push-On Terminals

Click for a larger picture of Push Button Switch, Momentary On, Push-On Terminals
View Catalog Page in PDF format

This switch can be used for the same applications as our Momentary-On Toggle Switches (Part Nos. 4422 and 4417) for those who prefer a push-button.

This high-quality switch is rated for 15 amps. Contacts are made of solid, fine silver for highest reliability. The mounting bushing diameter is 15/32 inch, and the bushing is 11/16 inch long. The metal pushbutton sticks out 9/16" from the bushing (the plastic button on our old Part No. 4423 pushbutton switch projected just 0.15" from the bushing). Panel mounting nuts are included. Connection is by standard 1/4" male push-on terminals.

Part No.
Stock Status
In Stock
Related Product Groups
Heavy-Duty Dash Switches
