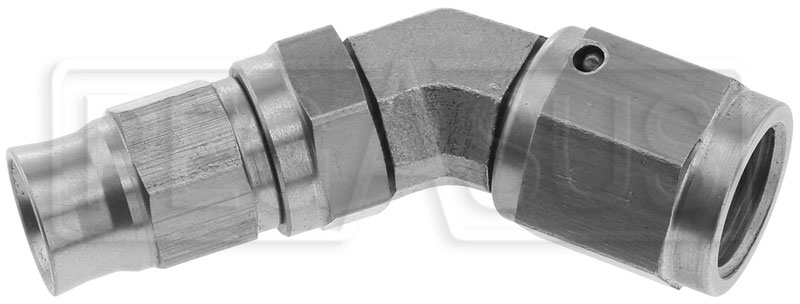

Stainless 45 degree 4AN Hose End for -3 Size PTFE Hose

This special forged stainless steel 45 degree hose end fitting is designed to work with our -3 PTFE Lined Stainless Braided Hose (Part No. 3260-3, sold separately). The female end has a swivel nut to fit standard 4AN (7/16-20, 37 degree flare) male fittings. Sold individually.

Note that -3 hose is normally used with 3AN (3/8-24) fittings. This unequal-size hose end makes it easy to convert a brake system from -4 to -3 hose without changing any adapters.

This type of hose end is easily installed in the field without any special tooling required. The fitting is reusable, although the brass sleeve must be replaced each time a fitting is reused. One sleeve is included with each hose end. We also offer the Spare -3 Brass Sleves separately, Part No. 3261-3-Sleeve.
