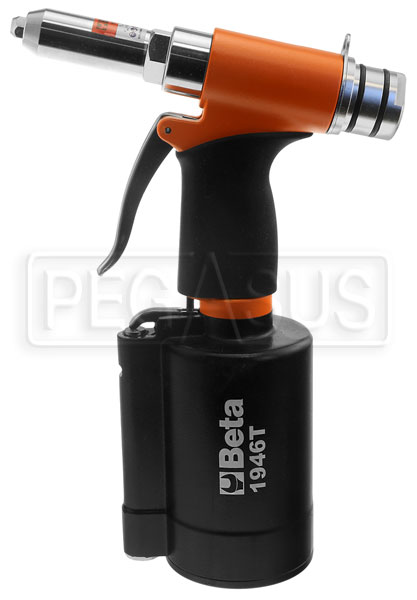

Beta Tools 1946T Handheld Pneumatic Pop Rivet Tool

Click for a larger picture of Beta Tools 1946T Handheld Pneumatic Pop Rivet Tool
View Catalog Page in PDF format

Brand: Beta Tools

This item qualifies for FREE Shipping in the continental United States!

Give your hand and wrist a rest with this powerful air/hydraulic riveter from Beta Tools! Manually pulling rivets can contribute to carpal tunnel syndrome if done over a long period of time. This riveter makes even the most time-consuming assembly work quick and easy.

This Betal model 1946T is the updated, more powerful version of the popular 1946 model. The light weight (3.5 lb / 1.7 kg) and tuned balance make this tool easy to hold and operate, and the new rubberized handle helps to absorb vibration. The long trigger can easily be operated with one or two fingers for minimum fatigue. A holding tube on the back of the head (not shown) catches spent mandrels for safe disposal. Includes noses for common 3/32", 1/8", 5/32" and 3/16" blind rivets. The 1946T is powerful enough to pull even stainless steel rivets in 3/16" diameter. The bottom of the tank even has gauges to identify rivet sizes. Beta orange with silver zinc-plated nose and trigger, black rubberized handle, and black oil reservoir tank.

Length of head: 10.7" / 272mm (including catch tube)
Height: 11.22" / 285mm
Stroke length: 5/8" / 16mm
Pulling force: 2000 lb / 9000 N
Air inlet port: 1/4 NPT female (coupler not included)
Recommened hose size: 3/8" (5/16" minimum)
Working pressure: 85 psi / 6 bar (90 psi / 6.2 bar maximum)
Mean air consumption: 0.07 cu ft / 2.0 l per cycle
Warranty: 1 year manufacturer warranty against defects.

Part No.
Stock Status

Condition: New

In Stock
