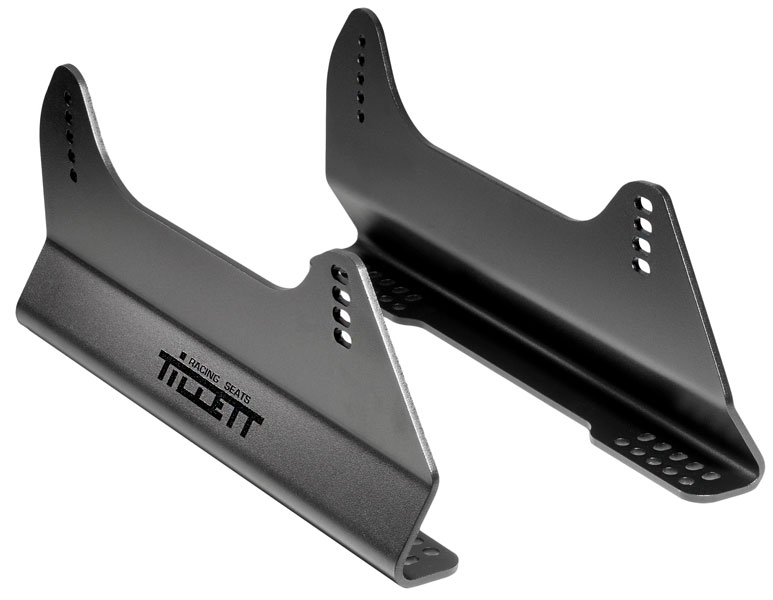

Tillett STBT 60mm Taller Seat Bracket Set for Saloon Cars

Brand: Tillett Racing Seats

Most side-mount auto racing seats have vertical sides, but the sides of Tillett auto racing seats are angled outwards 2 degrees. Using standard 90-degree side mounts from other manufacturers can overstress the shell of a Tillett seat!

These special seat mounting brackets from Tillett have the correct 92 degree bend instead of a 90-degree right angle in order to fit the shells of Tillett racing seats. This "tall" version position the seat 60mm (2 3/8") higher than the standard Tillett STBI or STBO brackets. Five rear mounting holes and four slotted front mounting holes allow a variety of height and angle options*.

Five sets of mounting holes and slots in the base let you select fore-and-aft position in cars without sliders. The extra clearance provided by the taller brackets allowed Tillett to position the mounting holes almost directly under the upright portion (eliminating the need for separate "inner" and "outer" versions). These brackets are designed to be mounted to a flat floor or to seat sliders (not included).

The black powder coated brackets are made from 5mm thick aluminum for strength with light weight (just 1.5kg / 3.3 lb per pair). Made in the UK. Sold in pairs (one is enough for one seat).

* Because of the contour of Tillett seat shells, using the lower mounting holes and slots may require the addition of the Tillet Pegged Spacer Kit, Part No. TIL-TK8 (sold separately).
