Brand: Stäubli
This item qualifies for FREE Shipping in the continental United States! |

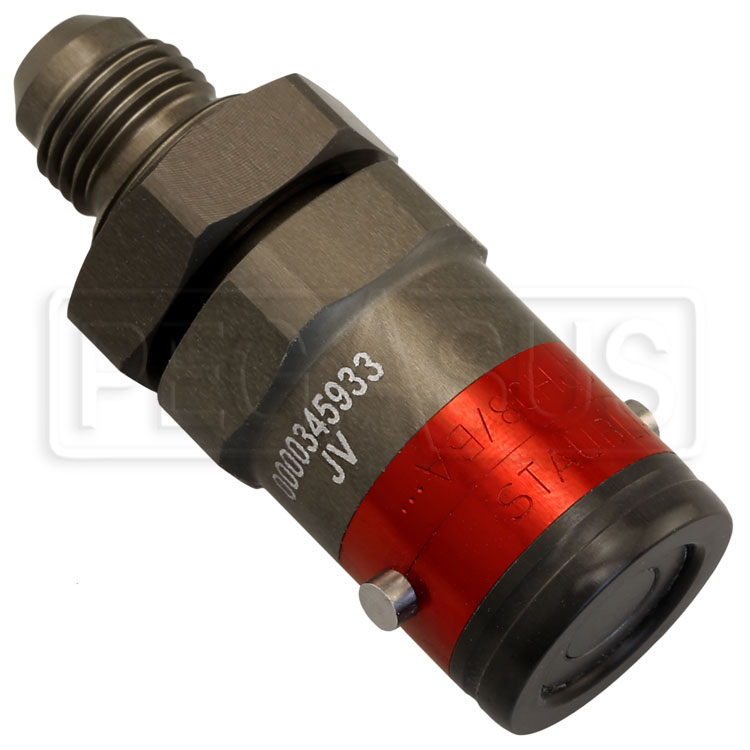

Staubli have been leaders in quick-release couplings for over 40 years. The SPH series are designed specifically for motorsport transmission and high-pressure oil lines, with many great features.
- Compact: 1 1/8" diameter, 2 1/8" long (excluding AN fittings) when connected
- Lightweight aluminum construction: Less than 3 ounces per set
- FPM (Fluorocarbon rubber) seals are compatible with fuel and oil
- 1150 psi (80 bar) pressure rating suitable for high-pressure racing fuel and oil systems
- No spillage when disconnected (spares can be stored filled and ready to install during a pit stop)
- No air allowed in (no need to bleed the system after reconnecting)
- Bayonet locking system takes just a push and a twist to connect or disconnect
- Male 6AN or 8AN bulkhead (panel-mount) fittings
An SPH08 female with a 6AN fitting can be mated to an SPH08 male with an 8AN fitting (and vice versa). SPH08 fittings will not mate with the smaller SPH05 series.
Note: "Female" refers to the internal valve mechanism, not to the retention sleeve. The Female SPH coupling fits inside the retention sleeve on the male coupling.
