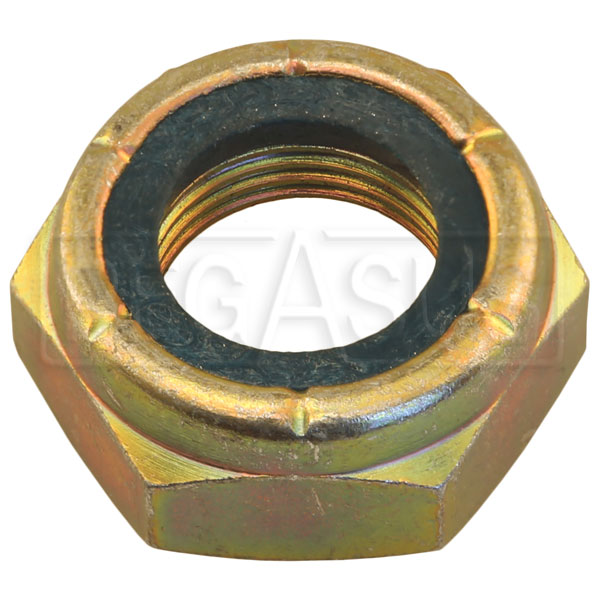

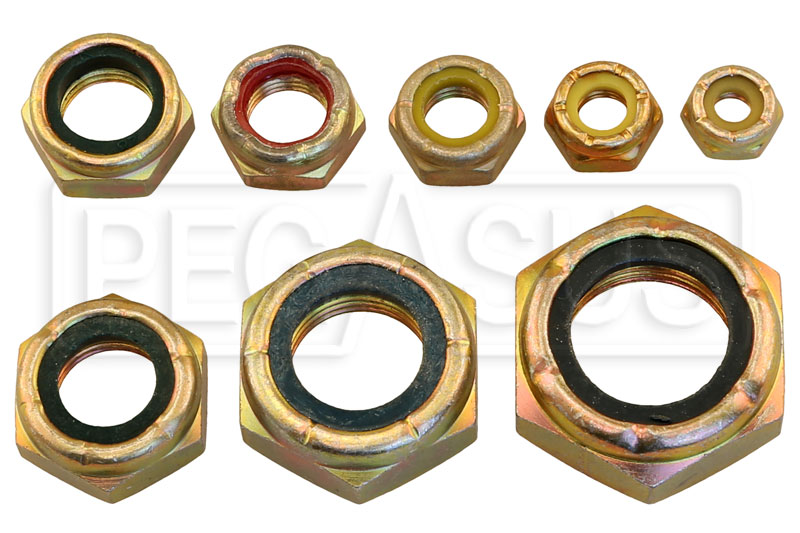

AN364 Thin Nylock Jam Nut (MS20364)

These are Military specification versions of what is commonly referred to as a "Nylock" or nylon locking nut. These cad-plated steel nuts are rated at 125,000 psi tensile strength and for operating temperatures of up to 250° F. The AN364 series is a half-height variation for bolts loaded primarily in shear. The AN364 specification is equivalent to the MS20364 and newer MS21083 specification*. Sold individually.

* The MS21083 spec calls for a larger hex on the 7/16-20 size than the AN364 spec.

AN364 Lock Nut Specifications
UNF Thread Size	Wrench Size	Thickness (Max)	Part No.
10-32	3/8"	0.188"	AN364-3
1/4-28	7/16"	0.219"	AN364-4
5/16-24	1/2"	0.250"	AN364-5
3/8-24	9/16"	0.282"	AN364-6
7/16-20	5/8"	0.328"	AN364-7
1/2-20	3/4"	0.328"	AN364-8
5/8-18	15/16"	0.407"	AN364-10
3/4-16	1 1/16"	0.422"	AN364-12

Reusing Nylon Locking Nuts
The FAA has issued guidelines on the reuse of nylon locking nuts. Specific recommendations have been published for larger sizes (7/16-20 and up), but the general rule is that you should not be able to turn the nut by hand once the locking insert engages the male threads. If you can turn the nut with your fingers, it must be replaced. When in doubt, replace!

Note: AN and MS specs do not cover the color of the nylon locking insert. We cannot control or otherwise guarantee the colors used from lot to lot.

Enter desired order quantities below, then click the "Add selected quantities to cart" button.

Order Qty

Part No.

Desc.

Price

Status

AN364-3
Condition: New
SKU: 31128

10-32 Thin Nylock Jam Nut, AN364 - Right Hand

1 to 11: $0.39 12 to 149: $0.35 150 & up: $0.31

In Stock

AN364-4
Condition: New
SKU: 31129

1/4-28 Thin Nylock Jam Nut, AN364 - Right Hand

1 to 11: $0.44 12 to 149: $0.40 150 & up: $0.35

In Stock

AN364-5
Condition: New
SKU: 31130

5/16-24 Thin Nylock Jam Nut, AN364 - Right Hand

1 to 11: $0.74 12 to 149: $0.67 150 & up: $0.60

In Stock

AN364-6
Condition: New
SKU: 31131

3/8-24 Thin Nylock Jam Nut, AN364 - Right Hand

1 to 9: $1.39 10 to 99: $1.24 100 to 999: $1.08 1000 & up: call

In Stock

AN364-7
Condition: New
SKU: 31132

7/16-20 Thin Nylock Jam Nut, MS21083 - Right Hand

1 to 9: $1.69 10 to 99: $1.51 100 & up: $1.33

In Stock

AN364-8
Condition: New
SKU: 31133

1/2-20 Thin Nylock Jam Nut, AN364 - Right Hand

1 to 9: $2.83 10 to 99: $2.60 100 & up: $2.36

In Stock

AN364-10
Condition: New
SKU: 31134

5/8-18 Thin Nylock Jam Nut, AN364 - Right Hand

1 to 9: $2.21 10 to 99: $2.01 100 & up: $1.81

In Stock

AN364-12
Condition: New
SKU: 31135

3/4-16 Thin Nylock Jam Nut, AN364 - Right Hand

1 to 7: $4.34 8 & up: $3.95

In Stock
