Part No.: AN970-Size

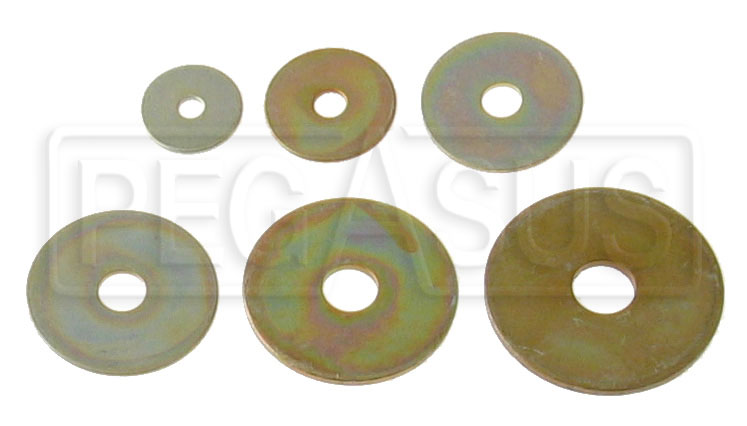

AN970 Large Area Flat Washer

AN970 Large Diameter Washers are similar to AN960 Flat Washers but with an oversized outside diameter for applications where a large bearing area is required. Sold individually.

AN970 Flat Washer Dimensions
Bolt Size Outside Diameter Thickness
#10 7/8" 0.063"
1/4" 1 1/8" 0.063"
5/16" 1 3/8" 0.063"
3/8" 1 5/8" 0.063"
7/16" 1 13/16" 0.109"
1/2" 2" 0.109"

Click image for big picture

Click for a larger picture of AN970 Large Area Flat Washer


View Catalog Page in PDF format

Order Qty
Part Number
Description
Price
Status

AN970-3

#10 Large Area Washer, 0.875 OD, 0.063 Thick
1 to 11: $0.10
12 to 149: $0.09
150 & up: $0.08
In Stock

AN970-4

1/4 Large Area Washer, 1.125 OD, 0.063 Thick
1 to 11: $0.16
12 to 149: $0.14
150 & up: $0.12
In Stock

AN970-5

5/16 Large Area Washer, 1.375 OD, 0.063 Thick
1 to 11: $0.18
12 to 149: $0.16
150 & up: $0.14
In Stock

AN970-6

3/8 Large Area Washer, 1.625 OD, 0.063 Thick
1 to 11: $0.24
12 to 149: $0.23
150 & up: $0.21
In Stock

AN970-7

7/16 Large Area Washer, 1.812 OD, 0.109 Thick
1 to 11: $0.49
12 to 149: $0.43
150 & up: $0.37
In Stock

AN970-8

1/2 Large Area Washer, 2.00 OD, 0.109 Thick
1 to 11: $0.69
12 to 149: $0.61
150 & up: $0.53
In Stock
