Beta Tools 1435 Eccentric Stud Extractor

Brand: Beta Tools

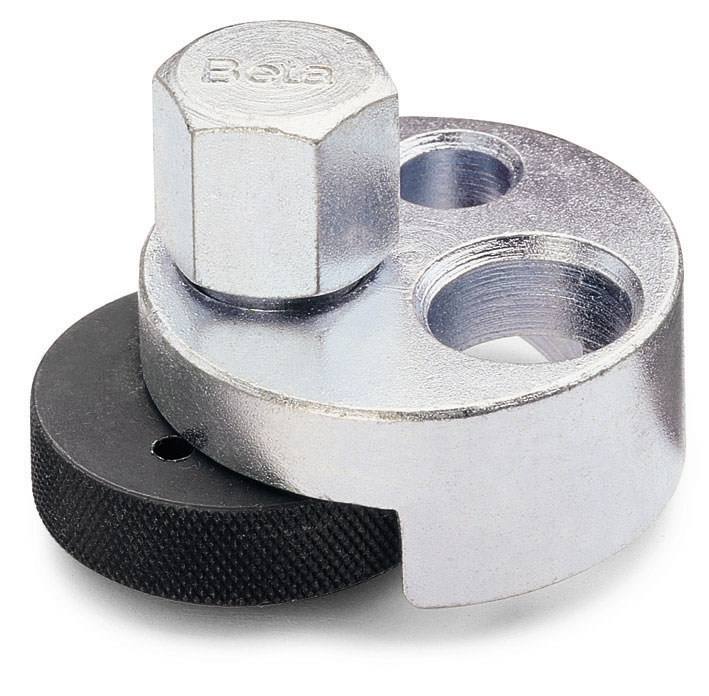

The 1435 Stud Extractor from Beta Tools uses a single knurled wheel on an eccentric to grip and turn studs, making removal easy and painless (for you and for the stud).

Two different holes allows the tool to work with studs from 4mm to 20mm (3/16" to 3/4") OD. Simply set the tool with the stud through the appropriate hole, place the knurled wheel in contact with the stud, then use a wrench to turn the tool. As you turn it, the knurled wheel is forced against the stud, gripping it tightly.

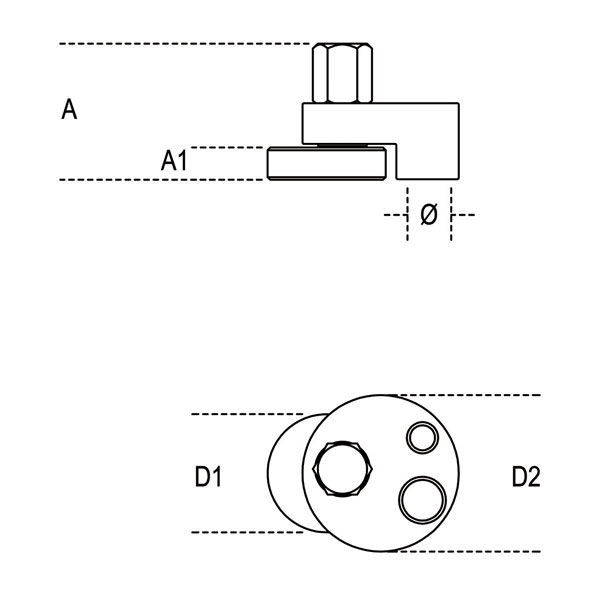

The knurled wheel is just 12mm (1/2") thick (A1) to minimize contact with the threads of the stud. Overall height including the wrench hex (A) is 44mm (1 3/4"). Knurled wheel diameter (D1) is 43mm, overall diameter is 55mm (2 3/16"). Weighs 429g (1 lb). Plating color may vary from photo.
