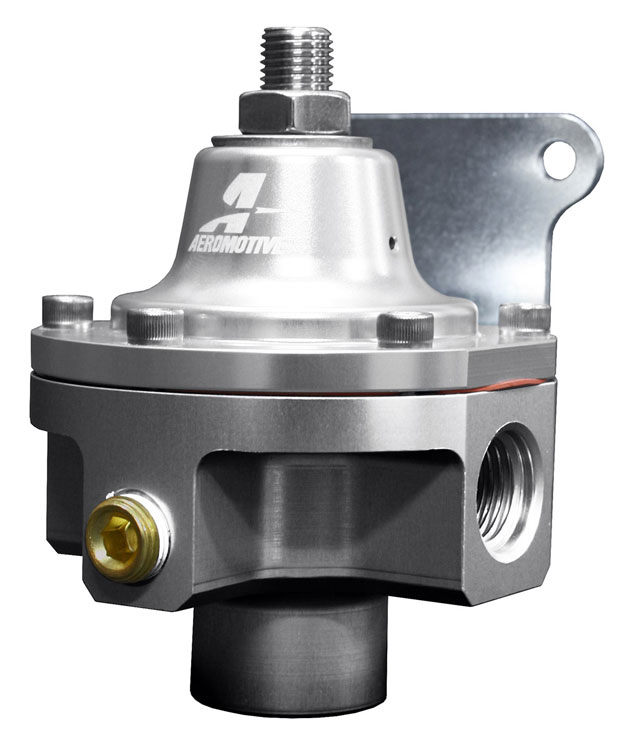

Aeromotive Fuel Pressure Regulator, 1.5 to 5 psi, -6 ORB

Click for a larger picture of Aeromotive Fuel Pressure Regulator, 1.5 to 5 psi, -6 ORB
View Catalog Page in PDF format

Brand: Aeromotive Fuel Systems

This item qualifies for FREE Shipping in the continental United States!

The Aeromotive Ultra-Low Pressure Regulator is specifically designed for carburetors that require very low fuel pressure (such as Weber, Solex, and Mikuni side-draft). It allows high fuel flow volume at very low pressures, with very little pressure creep -- even when used with a fuel pump putting out up to 20 psi!

This model can be set to between 1.5 and 5 psi. With the aid of an accurate pressure gauge, it can be easily adjusted as required within its specified range. The "deadhead" regulator type does not require a bypass return to the tank.

There is one -6 (9/16-18) O-Ring inlet port at the bottom and two -6 O-Ring outlet ports on the sides to aid the connection of multiple carbs (single carburetor applications should plug one of the outlet ports). A separate 1/8 NPT port (plugged from the factory) is also provided for a fuel pressure gauge (sold separately). The clear anodized aluminum body provides a very understated look that even looks at home in vintage cars. Made in USA.

Compatible with gasoline, alcohol blends to E-85, and diesel fuel.

Qty
Part No.
Price
Stock Status
AEI-13222

Condition: New

$247.95
In Stock
