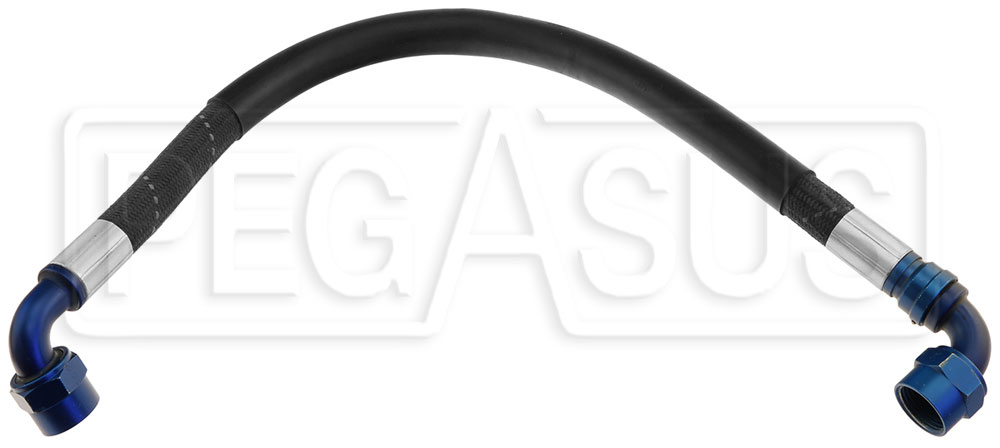

Aramid Braided Hose, 10AN 90 deg. Swivel Ends, 22.75"

Custom Crimped and Tested Hose Assembly specifications:

Hose material: 3490-10-INCH - Type 910 PTFE Lined Aramid Braided Hose
Length: 22.75 inches centerline-to-centerline of the 90 degree hose ends
End A: HE201-10-090 - 10AN Female 90 Degree Hose End
End B: HE205-10-090 - 10AN Female 90 Degree Swivel Hose End (swivel hose end allows any alignment)
Partially covered with Raychem heatshrink tubing (included at no cost)

This custom hose assembly was partially installed before being returned to us because it was a little too short for the application. It is made of 910 PTFE Lined Aramid Braided Lightweight Racing Hose with heat shrink covering part of its length. The hose assembly measures 22.75 inches centerline-to-centerline of the 90 degree hose ends.
