Brand: Optimum Balance Products (OBP)
|This item qualifies for FREE Shipping in the continental United States!|

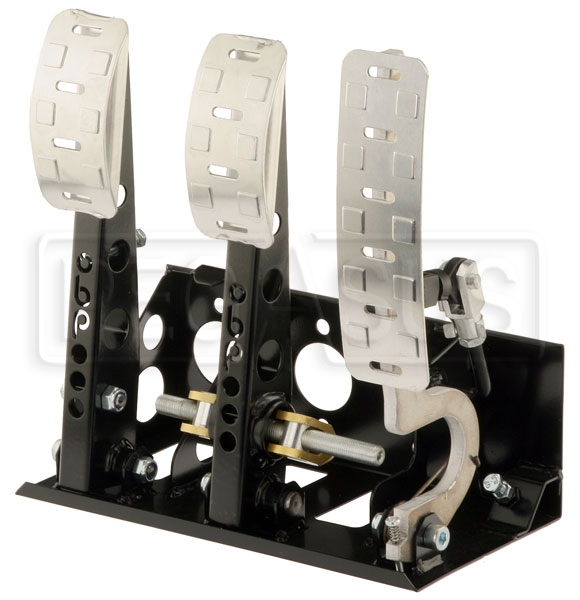

The Pro-Race 3-pedal floor-mount pedal box offers an all-inclusive system that is simple to install, making it suitable for a wide range of applications. The lightweight steel assembly includes Clutch, Brake, and Throttle pedals in one unit. All pedals ride on oil-impregnated bushings for smooth, consistent operation and long life.
Clutch pedal: For hydraulic applications. Includes a built-in adjustable pedal stop to prevent overtravel.
Brake pedal: For dual master cylinder systems. Includes a built-in bias bar (7/16" thread, accepts standard 5/16" pushrods).
Throttle pedal: Can be adapted to accept a cable, linkage, or throttle position sensor. Includes a basic bellcrank linkage to convert forward pedal motion to rearward motion for front-engine applications. Spring-loaded with an adjustable return stop.
The Clutch and Brake pedals also feature textured aluminum pads with 3/4" of height adjustment. The all-aluminum Throttle pedal also has a textured aluminum pad with a slight curve for comfort. Weighs 5.8 lbs without master cylinders. Measures 10 1/4" Wide x 11 1/16" High at pedals x 5 9/16" Deep without master cylinders. Accepts master cylinders with the common 2-bolt vertical (2 1/4") mounting pattern. Master cylinders and remote bias adjuster cable sold separately.
Suggested master cylinders and adjuster cables, sold separately:
Girling Master Cylinders or Tilton 74-, 75-, or 76-Series Master Cylinders (3 required)
Tilton Bias Bar Remote Adjuster Cable (Part No. 3526) or OBP Bias Bar Remote Adjuster Cable (Part No. 3519-126)
