Brand: Setrab Oil Coolers

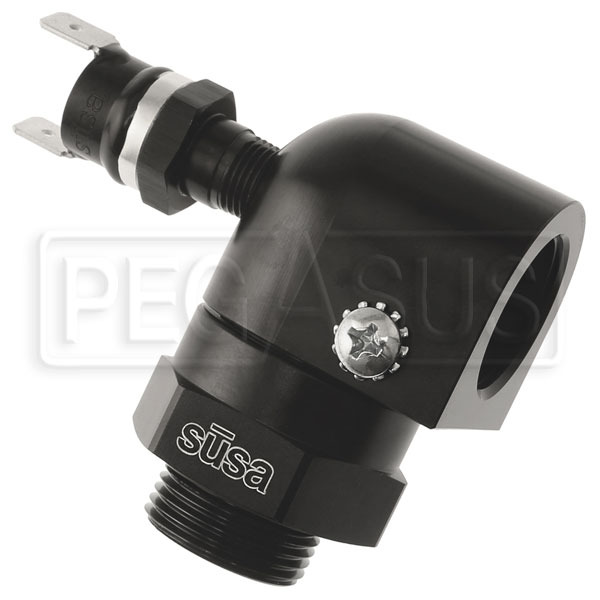

This compact contoller switch assembly mounts in the port of your Setrab oil cooler to turn your electric fan on and off automatically.
The black anodized right-angle adapter fitting has an M22x1.5 male swivel fitting on one end and an M22 female port on the other. Simply disconnect your existing M22 Setrab adapter from its port on the cooler and install this fitting between the two. The included thermal switch activates your fan relay when the fluid temperature reaches 200° F (93° C). The switch turns off when the temperature drops down to 185° F (85° C). Activation and reset temperature rating tolerances are +/- 3.6° F (+/- 2° C). Two 1/4" spade terminals make electrical hook up easy. A blue dot on the side of the switch identifies the 200°F version.
Note: This switch is not rated for the current draw of the fan. It must be used to control a fan relay.
Fan and relay are not included.
