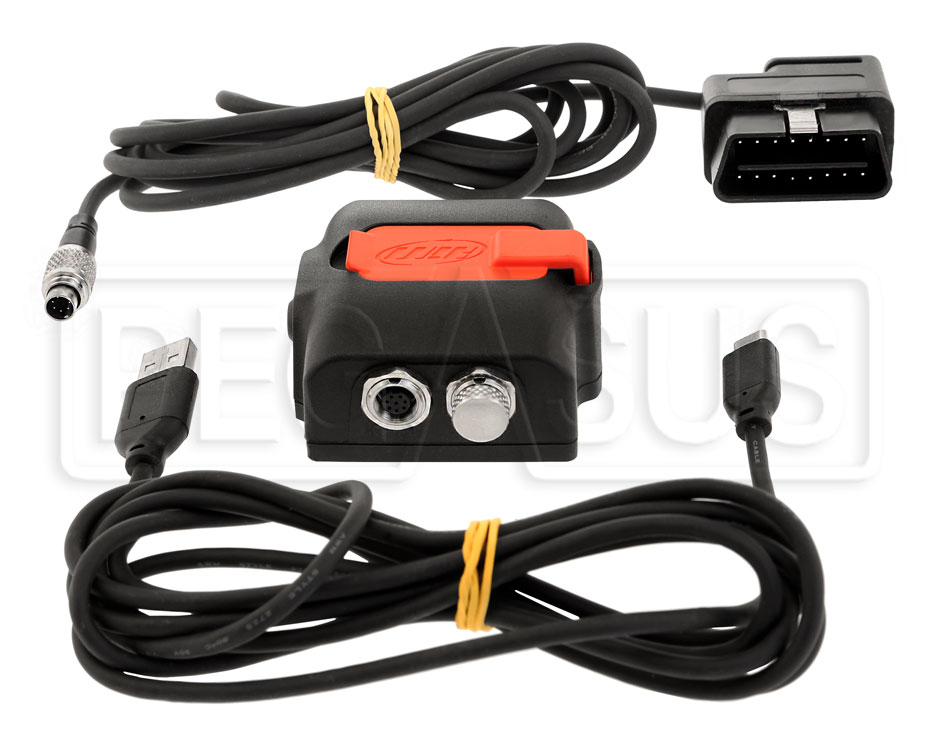

AiM XLog Extra Small Data Logger, 2M OBD Cable

Brand: AIM Sports

Measuring less than 3" x 2.75" x 1.25" (72mm x 65mm x 30mm), the XLog is one of the most compact data loggers ever produced by AiM... and yet, it is every bit as capable and expandable as the most powerful AiM systems!

This XLog kit includes a special cable that plugs directly into your OBD-II diagnostic port to connect to your OBD-II compliant ECU (late-model production vehicles). The XLog can communicate with the same extensive list of OEM and racing ECUs as other AiM systems. An internal 25 Hz GPS/GLONASS satellite receiver calculates and logs position, speed, and acceleration in 3 axes. You can also add any of the CAN expasions that you would use with other AiM systems. Add a Data Hub to connect Lambda, SmartyCam, and even ACC2 sensor hubs to build this little powerhouse into a full-function data logger!

Two 712-type (screw-in) Binder ports provide connection for your ECU and CAN Expansion. This version includes a 2 meter (6.5 ft) ECU cable with an 8-pin 712 connector at one end and an OBD-II plug at the other end. In addition to a large 4GB internal memory, a removable 16GB USB-C memory card is also included. Weighs approximately 150g (5.3 oz). CAN expansions sold separately.
