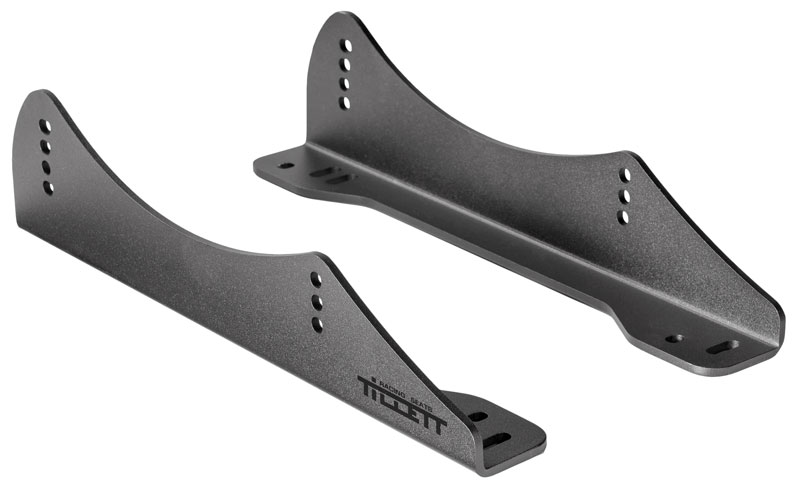

Tillett TBB5 Aluminum B5 Seat Brackets, Low

Brand: Tillett Racing Seats

The compact design of the Tillett B5 and B5C racing-style seats means that most standard side-mount seat brackets won't fit. The B5 and B5C use a narrow 230mm bolt hole spacing that requires special Tillett brackets such as these.

This bracket set is made of sturdy 5mm thick aluminum with a textured black powdercoat finish. Three mounting holes in the front and four at the rear allow you to raise, lower, or angle the seat the way you need. Unlike the brackets for other Tillett seats, the TBB5 are vertical so they can be installed facing outwards (more stable) or inwards (narrower installations). Weighs just 1.16kg (2 lb 9 oz). Each set is enough for one seat. Mounting hardware is not included.

Note: The TBB5 brackets are so low, the bottom of the B5 seat can extend down past the bottom of the brackets! These mounts are only appropriate for use where the floor dips down lower than the mounting surface for the brackets.
