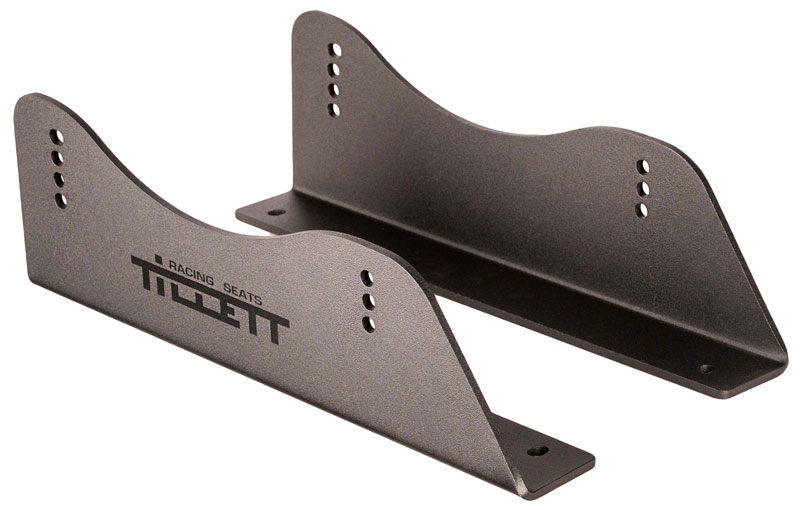

Tillett TBB5 Aluminum B5 Seat Brackets, Standard (Tall)

Brand: Tillett Racing Seats

The compact design of the Tillett B5 and B5C racing-style seats means that most standard side-mount seat brackets won't fit. The B5 and B5C use a narrow 230mm bolt hole spacing that requires special Tillett brackets such as these.

This bracket set is made of sturdy 5mm thick aluminum with a textured black powdercoat finish. The TBB5T is the "Standard" height mounting bracket for the B5, keeping the seat 30mm higher than the extra-low TBB5 set. Three mounting holes in the front and four at the rear allow you to raise, lower, or angle the seat the way you need. Unlike the brackets for other Tillett seats, the TBB5T are vertical so they can be installed facing outwards (more stable) or inwards (narrower installations). Weighs just 1.4kg (3 lb 2 oz). Each set is enough for one seat. Mounting hardware is not included.

The TBB5T brackets are tall enough to position the bottom of the B5 seat even with or above the bottom of the brackets. These mounts are appropriate for most installations, including flat floors.
