Tillett EBS Seat Brackets for Lotus Elise/Exige to 2016

Brand: Tillett Racing Seats

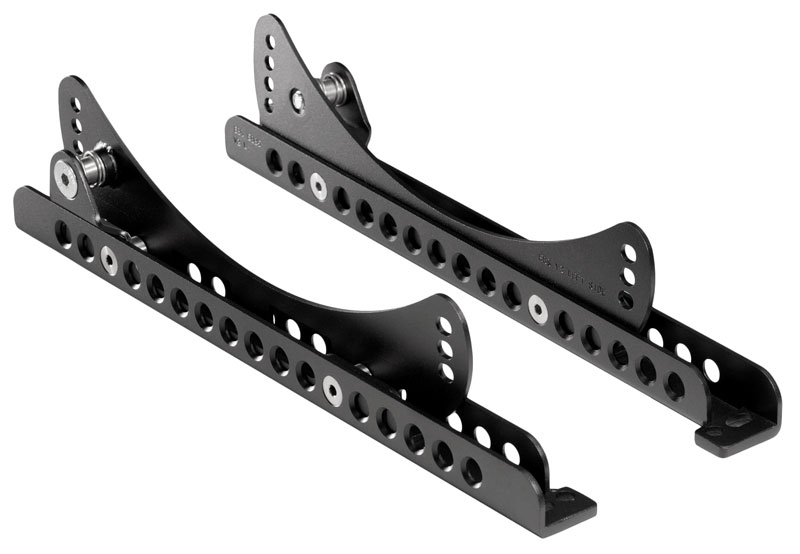

These brackets were designed by Tillett for rigid mounting certain seats in Lotus Elise (1996-2016) and Exige (2000-2016)*. The beefy powder-coated steel brackets allow multiple mounting locations both fore-and-aft and height/angle.

Each of the base members is a U-shaped channel, and each vertical member has a U-shaped profile for a snug, secure fit in its base. A special lug at the rear of each bracket is designed for mounting either the stock Lotus lap belt, a racing lap belt (9/16" or 7/16" mounting tab hole), or both. Can be used on either driver or passenger side (except B10 XL, see below). Weighs 2.2 kg (5 lb) per set. Each set mounts one seat. Does not include hardware to mount brackets to the chassis or to mount the seat to the brackets. Black only.

Fits Tillett B6 Screamer (Std and XL), B7 (Std and XL), B9 (Std only), B10 (Std only; XL fits only on the driver's side). Also fits "side mount" version of the non-FIA B6 seat (Std and XL).

* Fits cars up to 2016 model year, up to VIN ending in 1457. These cars have the necessary 383mm bolt spacing to match the base pieces. Vehicles outside this range will require modification to use these brackets.
