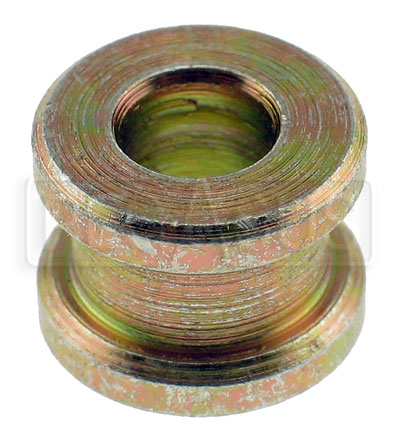

Bushing Only for Dzus 1500 Slide Latch Assembly

Click for a larger picture of Bushing Only for Dzus 1500 Slide Latch Assembly
View Catalog Page in PDF format

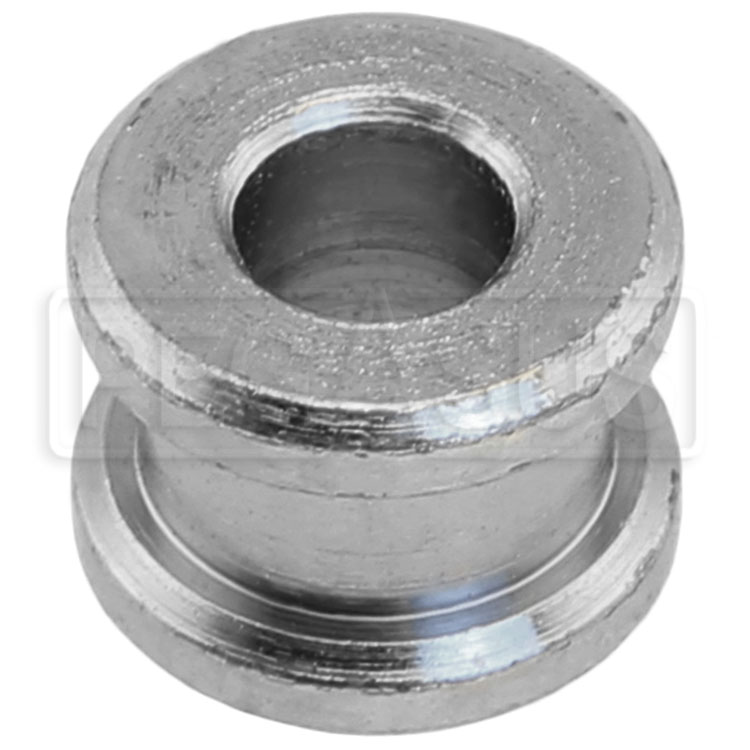

This is the same steel bushing included in our Dzus 1500 Slide Latch Assembly (Part No. 3009). Attach with a #8 or 4mm screw. Plating color may vary.

ID: 0.17"
Major OD: 0.38"
Minor OD: 0.29"
Groove Width: 0.12"
Height: 0.29"

This bushing is also perfect for bodywork O-ring fasteners! Just add an AN960 Flat Washer (Part No. AN960-08L, sold separately) between the bushing and the head of the mounting screw. Use an O-ring with up to 3/16" cross-sectional area.

Qty
Part No.
Price
Stock Status
3016

Condition: New

$0.89
In Stock


i would buythis product again

5

I used the product to hold bumpers on to a robot that was hit with about 100 lbs of force and they held up great

PineMarten

Tacoma, WA
