Brake Rotor, DB1/DB3, Van Diemen 4-bolt (LD19)

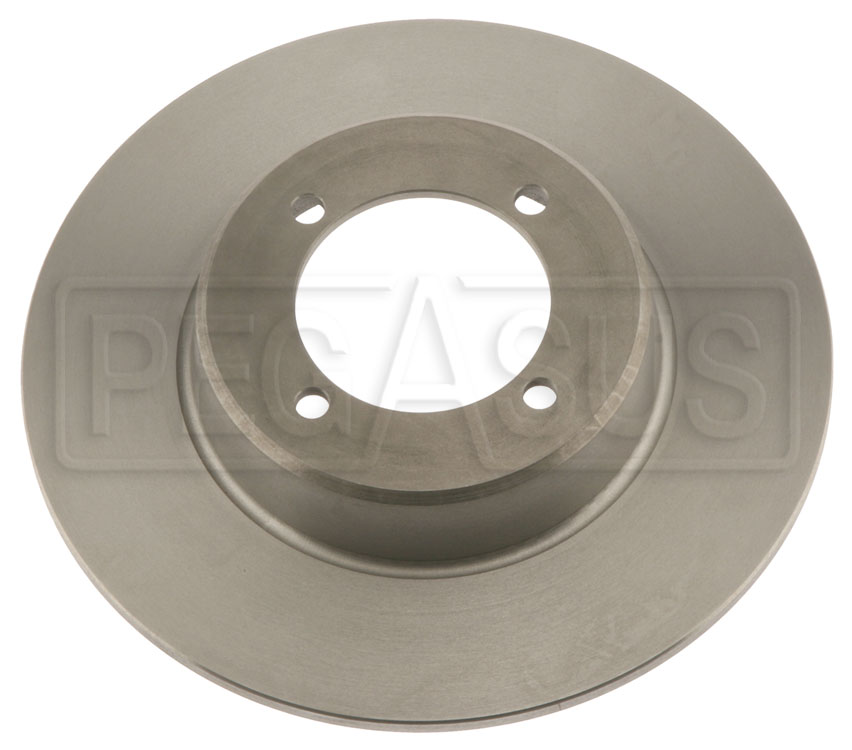

Click for a larger picture of Brake Rotor, DB1/DB3, Van Diemen 4-bolt (LD19)
View Catalog Page in PDF format

Brand: Campbell Motorsport

If you spend too much time trying to bed your brake pads, consider replacing your worn, grooved rotors! Our brake rotors are brand-new castings made in the USA exclusively for racing use. They are not repackaged street car rotors. Sold individually.

This size fits Swift DB-1 FF, DB-3 FC with LD19 calipers, and Van Diemen with 4-bolt wheels (non-centerlock). Note that some Swift DB-3 cars were fitted with larger calipers and should use the 10" OD Brake Rotors for Swift DB-3 with LD20 Calipers (Part No. 3545-29).

ODHeightThicknessIDBolt Pattern
9.75"1.63"0.29"3"(4) 3/8" on 3.75" circle

*Height is measured from the inner friction surface to the outer face of the hat. Place the rotor down on a table and measure from the table surface to the highest point on the hat.

This rotor can also replace AP/Lockheed rotor CP2222-9.

Qty
Part No.
Price
Stock Status
3545-10

Condition: New

$129.99
Not In Stock
notify me when available
