Brand: Setrab Oil Coolers
|This item qualifies for FREE Shipping in the continental United States!|
Setrab oil coolers have been popular in all levels of racing since the 1970s. The brazed aluminum construction provides the maximum cooling capacity in the smallest possible space, with minimal pressure drop. Coolers are pressure tested to 10 bar (145 psi) to ensure quality. The black epoxy finish protects against corrosion and looks great. The unique convertible inlet fittings (sold separately) allow you to change your plumbing without having to replace the cooler.

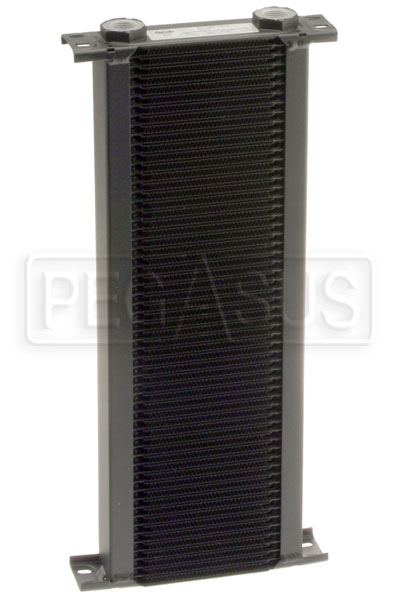

Setrab Pro Line Series 1 coolers measure 8 1/4" long (6 7/16" not including mounting tabs) x 1 7/8" thick. The female M22x1.5 ports are 4.8" center-to-center. This large 60 row size measures 18 3/16" tall (not including the hex on the port fittings). This size is recommended as an oil cooler on engines making 325-425 hp. Expect a pressure drop between 1/2 to 1 psi with this cooler.
Note: All oil coolers are relatively fragile. Care must be taken to avoid stressing the fittings when tightening connections (always use a backup wrench on the cooler fitting). The cooler should be mounted in a manner that will minimize vibration.
A great way to secure your cooler is with the Setrab Series 1 Mounting Bracket Kit, Part No. SET-23-1002 (sold separately).
