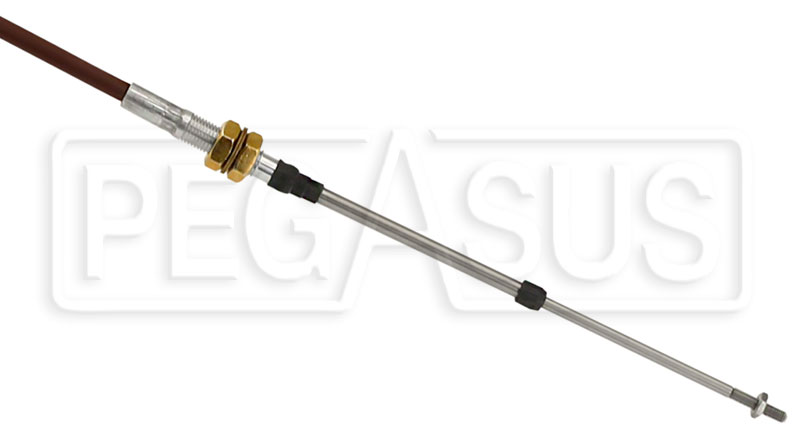

These heavy-duty cables are often used on adjustable sway bars, but they also work very well as shifter cables. Their operation is so smooth, some of our customers even use them as throttle cables.
Both ends of the housing are threaded (7/16-20) and include two jam nuts for easy bulkhead installation with approximately 3/4 inch of adjustment per end. These cables have a working load rating of 60 pounds in compression and 120 pounds in tension. Length is measured from end-to-end of the inner cable including the threaded ends. Housing clamps sold separately.
| Standard Dimensions for Push-Pull Cables |
|---|
| Thread | 10-32 |
| Bulkhead Mount (middle of thread) to Cable End (min) | 6" |
| Bulkhead Mount (middle of thread) to Cable End (max) | 9" |
| Travel | 3" |
| Bulkhead Mount (middle of thread) to End of Jacket | 5" |
| All dimensions are +/- 1/4" |
