Camloc 27S3 Light Duty Stud, Flush Head, Cross Recess

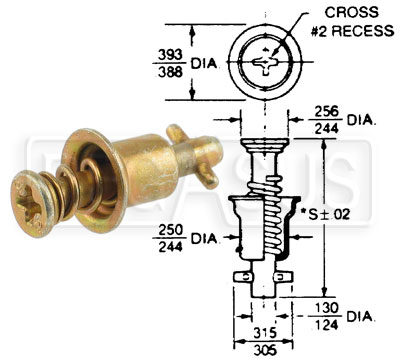

These light-duty Camloc studs are rated for 200 pounds working strength (ultimate tensile strength 300 pounds). The Phillips (cross) head allows quick use with standard #2 Phillips screwdrivers (no special tools needed). The 27-Series are easily identified by the 1/4" diameter head (larger Camloc 40-Series Studs have a 3/8" diameter head). Each stud assembly includes the stud, crosspin, barrel, and spring. Sold individually.
The dash number is normally stamped on the head of the stud. The dash number corresponds to overall stud length using the following formulae:
Dash number = (Length - 0.58) / 0.03
Length = (Dash number * 0.03) + 0.58
| 27 Series Camloc Stud Size Chart | |||
|---|---|---|---|
| Stud Dash Number | Stud Length (Overall) | Total Grip* | Part Number |
| 27S3-1 | 0.61" | .030"-.059" | 6070-01 |
| 27S3-2 | 0.64" | .060"-.089" | 6070-02 |
| 27S3-3 | 0.67" | .090"-.119" | 6070-03 |
| 27S3-4 | 0.70" | .120"-.149" | 6070-04 |
| 27S3-5 | 0.73" | .150"-.179" | 6070-05 |
| 27S3-6 | 0.76" | .180"-.209" | 6070-06 |
| 27S3-7 | 0.79" | .210"-.239" | 6070-07 |
| 27S3-8 | 0.82" | .240"-.269" | 6070-08 |
| 27S3-9 | 0.85" | .270"-.299" | 6070-09 |
| 27S3-10 | 0.88" | .300"-.329" | 6070-10 |
| 27S3-11 | 0.91" | .330"-.359" | 6070-11 |
| 27S3-12 | 0.94" | .360"-.389" | 6070-12 |
| 27S3-13 | 0.97" | .390"-.419" | 6070-13 |
| 27S3-14 | 1.00" | .420"-.449" | 6070-14 |
| 27S3-15 | 1.03" | .450"-.479" | 6070-15 |
* Total Grip is the total thickness of the panels to be fastened, measured from the front of the removeable panel to the top of the receptacle.
