Camloc 40S5 Heavy Duty Stud, Cross Recess

Brand: Camloc Fasteners

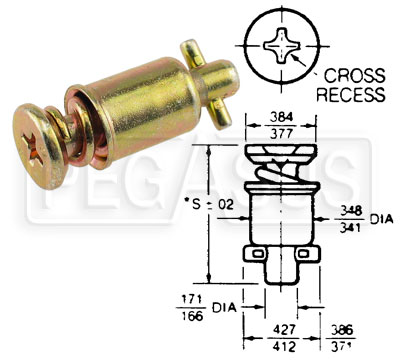

The heavy-duty 40-Series Camloc fasteners are rated for 700 pounds working strength (1050 pounds ultimate strength). The Philips (cross) head allows quick use with a standard Phillips #2 screwdriver (no special tools needed). The 40-Series are easily identified by the 3/8" diameter head (smaller Camloc 27-Series Studs have a 1/4" diameter head). Each stud assembly includes the stud, crosspin, barrel, and spring. Sold individually.

The 40-Series studs are designed to be used with a metal grommet (Part Nos. 6081, 6082, or 6083, sold separately) to help spread the attachment forces. The large diameter grommet (Part No. 6082) is recommended for soft materials such as fiberglass.

The dash number is normally stamped on the head of the stud. The dash number corresponds to overall stud length using the following formulae:

Dash number = (Length - 0.62) / 0.03
Length = (Dash number * 0.03) + 0.62

40 Series Camloc Stud Size Chart
Stud Dash Number	Stud Length (Overall)	Total Grip (see below)	Part Number
40S5-1	0.65"	.051"-.080"	6080-01
40S5-2	0.68"	.081"-.110"	6080-02
40S5-3	0.71"	.111"-.140"	6080-03
40S5-4	0.74"	.141"-.170"	6080-04
40S5-5	0.77"	.171"-.200"	6080-05
40S5-6	0.80"	.201"-.230"	6080-06
40S5-7	0.83"	.231"-.260"	6080-07
40S5-8	0.86"	.261"-.290"	6080-08
40S5-9	0.89"	.291"-.320"	6080-09
40S5-10	0.92"	.321"-.350"	6080-10
40S5-11	0.95"	.351"-.380"	6080-11
40S5-12	0.98"	.381"-.410"	6080-12
40S5-14	1.04"	.441"-.470"	6080-14
40S5-16	1.07"	.501"-.530"	6080-16*
40S5-18	1.10"	.561"-.590"	6080-18*
40S5-20	1.13"	.621"-.650"	6080-20*
40S5-22	1.16"	.681"-.710"	6080-22*
40S5-24	1.22"	.741"-.770"	6080-24*
40S5-26	1.28"	.801"-.830"	6080-26*
40S5-28	1.46"	.861"-.890"	6080-28*

Total Grip is the total thickness of the panels to be fastened (do not include the receptacle).

Enter desired order quantities below, then click the "Add selected quantities to cart" button.

Order Qty

Part No.

Desc.

Price

Status

6080-01
Condition: New
SKU: 47173

Camloc 40S5-1 Heavy Duty Stud, 0.65" Stud Length

1 to 7: $5.49 8 to 59: $4.94 60 to 499: $4.38 500 & up: call

In Stock

6080-02
Condition: New
SKU: 47174

Camloc 40S5-2 Heavy Duty Stud, 0.68" Stud Length

1 to 7: $5.49 8 to 59: $4.94 60 to 499: $4.38 500 & up: call

In Stock

6080-03
Condition: New
SKU: 47175

Camloc 40S5-3 Heavy Duty Stud, 0.71" Stud Length

1 to 7: $5.49 8 to 59: $4.94 60 to 499: $4.38 500 & up: call

In Stock

6080-04
Condition: New
SKU: 47176

Camloc 40S5-4 Heavy Duty Stud, 0.74" Stud Length

1 to 7: $5.49 8 to 59: $4.94 60 to 499: $4.38 500 & up: call

In Stock

6080-05
Condition: New
SKU: 47177

Camloc 40S5-5 Heavy Duty Stud, 0.77" Stud Length

1 to 7: $5.69 8 to 59: $5.12 60 to 499: $4.54 500 & up: call

In Stock

6080-06
Condition: New
SKU: 47178

Camloc 40S5-6 Heavy Duty Stud, 0.80" Stud Length

1 to 7: $5.69 8 to 59: $5.12 60 to 499: $4.54 500 & up: call

In Stock

6080-07
Condition: New
SKU: 47179

Camloc 40S5-7 Heavy Duty Stud, 0.83" Stud Length

1 to 7: $5.89 8 to 59: $5.30 60 & up: $4.71

In Stock

6080-08
Condition: New
SKU: 30695

Camloc 40S5-8 Heavy Duty Stud, 0.86" Stud Length

1 to 7: $5.89 8 to 59: $5.30 60 to 499: $4.71 500 & up: call

In Stock

6080-09
Condition: New
SKU: 30696

Camloc 40S5-9 Heavy Duty Stud, 0.89" Stud Length

1 to 7: $5.99 8 to 59: $5.39 60 to 499: $4.79 500 & up: call

In Stock

6080-10
Condition: New
SKU: 30697

Camloc 40S5-10 Heavy Duty Stud, 0.92" Stud Length

1 to 7: $5.99 8 to 59: $5.45 60 & up: $4.91

In Stock

6080-11
Condition: New
SKU: 30698

Camloc 40S5-11 Heavy Duty Stud, 0.95" Stud Length

1 to 7: $6.49 8 to 59: $5.85 60 & up: $5.20

In Stock

6080-12
Condition: New
SKU: 30699

Camloc 40S5-12 Heavy Duty Stud, 0.98" Stud Length

1 to 7: $6.49 8 to 59: $5.85 60 & up: $5.20

In Stock

6080-14
Condition: New
SKU: 30700

Camloc 40S5-14 Heavy Duty Stud, 1.04" Stud Length

1 to 7: $6.79 8 to 59: $6.12 60 to 499: $5.44 500 & up: call

In Stock

6080-16
Condition: New
SKU: 30701

Camloc 40S5-16 Heavy Duty Stud, 1.10" Stud Length

1 to 7: $6.79 8 to 59: $6.12 60 to 499: $5.44 500 & up: call

In Stock

6080-18
Condition: New
SKU: 30702

Camloc 40S5-18 Heavy Duty Stud, 1.16" Stud Length

1 to 7: $6.89 8 to 59: $6.21 60 & up: $5.53

In Stock

6080-20
Condition: New
SKU: 30703

Camloc 40S5-20 Heavy Duty Stud, 1.22" Stud Length

1 to 7: $6.89 8 to 59: $6.21 60 & up: $5.53

In Stock

6080-22
Condition: New
SKU: 30704

Camloc 40S5-22 Heavy Duty Stud, 1.28" Stud Length

1 to 7: $7.19 8 to 59: $6.51 60 & up: $5.82

In Stock

6080-24
Condition: New
SKU: 30705

Camloc 40S5-24 Heavy Duty Stud, 1.34" Stud Length

1 to 7: $7.99 8 to 59: $7.21 60 & up: $6.43

In Stock

6080-26
Condition: New
SKU: 30706

Camloc 40S5-26 Heavy Duty Stud, 1.40" Stud Length

1 to 7: $8.99 8 to 59: $8.12 60 to 499: $7.25 500 & up: call

In Stock

6080-28
Condition: New
SKU: 30707

Camloc 40S5-28 Heavy Duty Stud, 1.46" Stud Length

1 to 7: $9.99 8 to 59: $9.04 60 to 499: $8.08 500 & up: call

In Stock
