Part No.: CF001-Size

Carbon Fiber Sheet, Non-Cored, 1/32 inch nominal thickness

Pegasus is now proud to carry the finest carbon fiber from the leading American manufacturer of composites for motorsports. These hand made parts feature the same high quality materials and attention to detail that has made them a favorite of ALMS, Daytona Prototypes, F2000, BMW Motorsports and other top teams and manufactures. This is genuine carbon fiber, not a plastic with a carbon fiber pattern printed on it. It is not intended as a cosmetic dress-up part for show cars. Like all carbon fiber composites with optimal resin content, the surface displays tiny pinholes when viewed closely. One side is smooth and glossy; the back side is unfinished, with a rough matte texture.

This sheet is a single layer of 2x2 carbon fiber weave with a gloss clear coat on one side. It is somewhat flexible, so it is a great choice for block-off plates, cockpit interior panels, small enclosures, and other applications which will not be required to support a load. It can be cut easily with a fine (24-32 tooth) bandsaw, jigsaw, or hacksaw and finished with a file or sandpaper. We normally stock 24"x36" full sheets, 18"x24" half sheets, and 12" x 18" quarter-sheets.*

We also offer Carbon Fiber Sheet with a 1/8 Inch Core (Part No. CF-002), which is much more rigid and able to support more weight without adding significantly to the weight of the panel.

* Smaller, odd-size cut-off pieces are often available in addition to these sizes. Cut-off ends will be listed below whenever they are available. The sizes of the cut-offs varies, so we cannot guarantee future availability of any of those odd sizes.

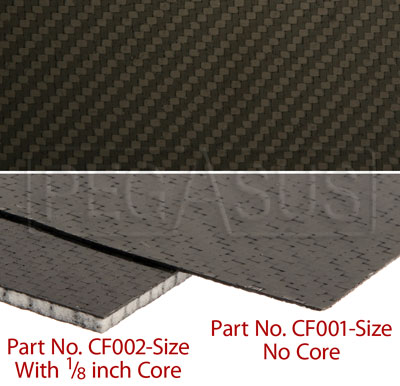

Click image for big picture

Click for a larger picture of Carbon Fiber Sheet, Non-Cored, 1/32 inch nominal thickness


View Catalog Page in PDF format

Order Qty
Part Number
Description
Price
Status

CF001-12x18

Non-cored Carbon Fiber Sheet, 12 x 18 inch $52.49 In Stock

CF001-18X24

Non-cored Carbon Fiber Sheet, 18 x 24 inch $99.99 In Stock

CF001-24X36

Non-cored Carbon Fiber Sheet, 24 x 36 inch $194.99 In Stock
