Tilton 3000 Series Hydraulic Release Bearing, 38mm Contact

This item qualifies for FREE Shipping in the continental United States!

This direct-acting throwout bearing eliminates all lost motion due to cable stretch or linkage flex. The compact size (just 3.07" - 3.12" high*, 3" 3-bolt circle) makes it small enough to be adapted to almost any transmission including Hewland, Webster, and Weismann units. Most applications will require fabrication of an adapter plate.

The radius-faced bearing has a 38mm contact diameter for clutches with 1 3/8" diaphragm spring hole, including Tilton OT-V (4.5") clutches, Tilton OT-III (5.5") Clutches, and certain AP 5.5" carbon clutches (CP6913, CP6914, and CP7543 only). Maximum travel is 0.70 inches, so a clutch pedal stop must be used to prevent damage to the clutch and the engine. Tilton recommends pairing this assembly with a 5/8" bore master cylinder (sold separately).

We also stock the Hydraulic Release Bearing Replacement 38mm Bearing (Part No. TE 62-008) and Tilton Hydraulic Release Bearing Rebuild Kit (Part No. 163-51).

* A 0.05" shim under the bearing can be removed to change the height from 3.12" (as supplied) to 3.07" if needed.


Qty
Part No.
Price
Stock Status
TE 60-3330
$374.99
Not In Stock
notify me when available


Related products:

  Tilton 300- and 3000-Series Hydraulic Release Bearings

  Clutch Release Bearings & Slave Cylinders for FF1600/FF2000


Click image for big picture

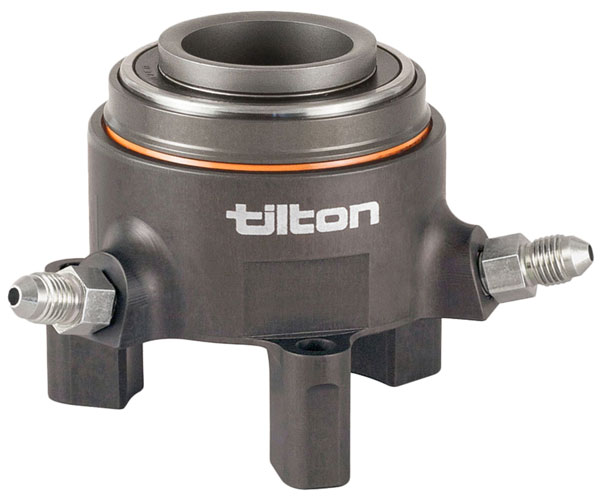

Click for a larger picture of Tilton 3000 Series Hydraulic Release Bearing, 38mm Contact
