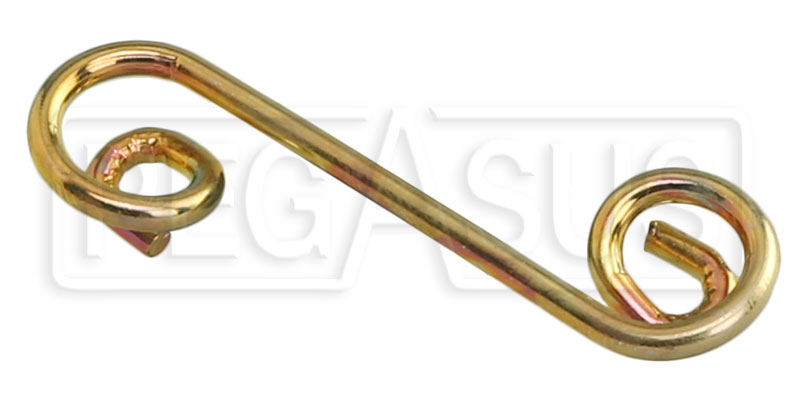

Spring Receptacle for 3/8 Studs, 0.250 Height

Click for a larger picture of Spring Receptacle for 3/8 Studs, 0.250 Height

This spring receptacle is designed to mate with our 3/8" Diameter Quarter-Turn Studs, Part Nos. 3022-400 through 3022-600. The plated steel spring is designed to be mounted to the backside of your fixed panel using two 1/8" diameter rivets spaced 1 3/8" center-to-center. Sold individually; stud assembly sold separately.

Total Thickness
of Panels to be Fastened
Stud Required
with 3024-250 Spring
.190 - .214 3022-400 or 3023-400
.290 - .314 3022-500 or 3023-500
.390 - .414 3022-600 or 3023-600

Qty
Part No.
Price
Stock Status
3024-250

1 to 11: $0.79

12 to 149: $0.70

150 & up: $0.60

In Stock
