OBP Pro-Race V2 Firewall Mount Single Brake Pedal

Click for a larger picture of OBP Pro-Race V2 Firewall Mount Single Brake Pedal

Brand: Optimum Balance Products (OBP)

This item qualifies for FREE Shipping in the continental United States!

This single pedal assembly is designed to let you convert an existing single-master brake system to a dual-master system with adjustable bias. It is also a good basis for original construction if you want to use your own throttle and clutch pedals.

The OBP Pro-Race V2 line features strong, lightweight pedals machined from solid billet. The pedal pads are adjustable vertically and horizontally for best fit. The steel pedal box is stronger and more rigid than the original Pro-Race version, with an improved pedal pivot with less lateral motion.

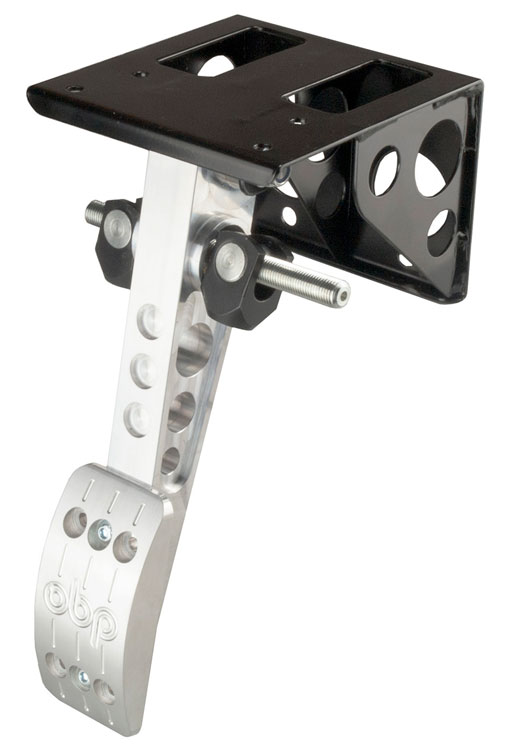

This assembly includes the brake pedal installed in a single-pedal box (approximately 5" wide x 5 1/2" deep), with a 7/16-20 adjustable brake bias bar installed in the pedal. The box is designed for mounting to the firewall or front bulkhead, with the pedal hanging down and the master cylinders (not included) poking forward through a bulkhead. Accepts any standard master cylinders with 2.25" vertical mounting holes and 5/16-24 pushrods (masters sold separately). Maximum pedal height 11". Weighs 2.5 lb.

Matching accessories sold separately:
OBP Remote Reservoir Master Cylinders (also accepts Girling, AP, or Tilton 74/75/76 Series)
OBP Remote Bias Adjuster Cable (also accepts Tilton, Wilwood, Longacre, or Brake-O-Meter remote adjusters)

Qty
Part No.
Price
Stock Status
OBP-0040PRT

Condition: New

$217.99
In Stock
