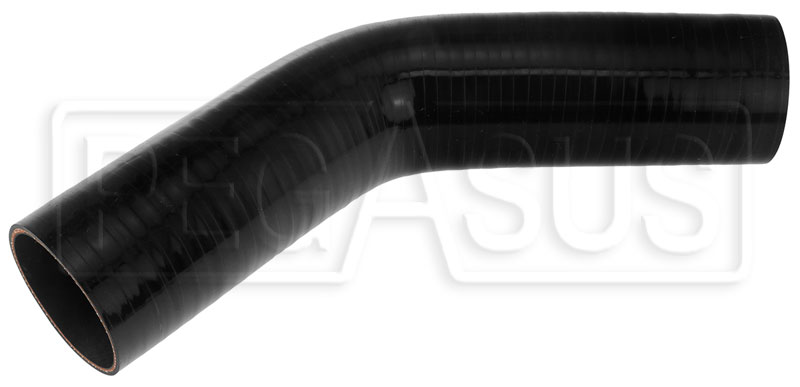

Fuel Hose, 2 1/4" I.D. 45 degree Elbow, 6" Legs

Click for a larger picture of Fuel Hose, 2 1/4" I.D. 45 degree Elbow, 6" Legs
View Catalog Page in PDF format

Brand: Pegasus Silicone Hose

This 2.25" (57mm) ID hose combines the tough flexibility and good looks of our black silicone coolant hoses with a fuel-and oil-resistant fluorocarbon rubber (FKM) inner liner. It is ideal for use as a fuel filler hose (connecting your fender filler to your fuel tank or fuel cell) or other low-pressure fluid transfer applications. The single-ply fabric reinforcement makes it relatively soft and very flexible. Pre-molded 45 degree elbow, black only.

Temperature rating: 300°F continuous, 400°F intermittent (0°F minimum)
Pressure rating: 43 psi burst, 8 psi working
Outer layer: VMQ silicone rubber
Inner liner: FKM fluorocarbon rubber
Reinforcement: 1 ply aramid fabric
ID: 57mm (2.25")
Wall thickness: 3mm (1/8")
OD: 63mm (2.5")

Use this hose to connect your Redhead PP20M Push-Pull Refueling Valve to your Fuel Safe Dump Can!

Part No.
Stock Status

Condition: New

1 to 3: $102.99

4 to 15: $94.83

16 & up: $86.67

In Stock
