Brand: AIM Sports
| This item qualifies for FREE Shipping in the continental United States! |
This plug-and-play kit gives you access to the data stream from the ECU in your Legends car*, along with full data logging capability. Just two plugs get you up and running with RPM, gear position, coolant temp, throttle position, and more. You don't even need to configure the dash to match the Legends ECU!
The super-compact 137mm x 88.4mm (5.39" x 3.48") MXm dash has an LCD display with a backlight that can be set by the user to a number of different colors. You can even set the backlight to change in response to an alarm. You can create up to 8 different pages, each with whatever data you want to see. Five configurable shift light LEDs across the top of the housing and 2 configurable alarm LEDs can each be programmed with any of 7 colors. Each alarm can be programmed with a steady or flashing LED, a custom text message on the screen, and multiple conditions (for example, oil pressure below 60 psi and engine speed above 4000 RPM... or over-rev by 500 RPM keeps the light on steady until power-off, but over-rev by 1000 RPM makes the same light flash until data is downloaded... ). Two digital outputs can be used to trigger external warning lights, relays, etc based on similar logic as the alarms. The shift lights can be programmed to come on at different RPM for each gear.
The 4GB non-volatile memory can store many hours of information for detailed analysis using AiM's latest Race Studio 3 software. All of the data can be downloaded to your computer using a built-in secure Wi-Fi connection (no cable required). Requires 9 - 15V external power supply.

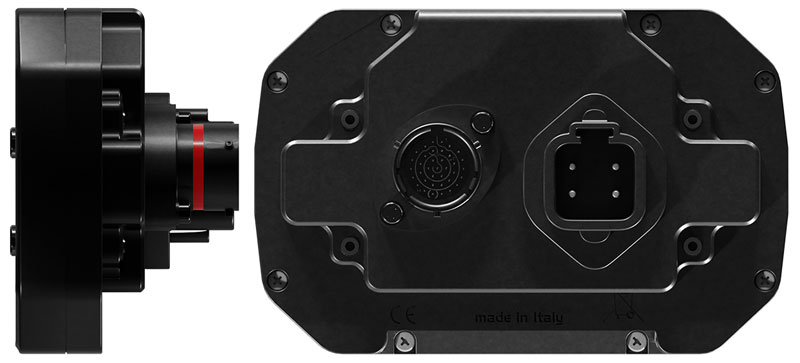

Kit includes Legends-specific MXm data logging display, Legends-specific wiring harness with 37 pin Deutsch connector, 4-pin connector kit for digital outputs, and Race Studio 3 software. All sensors sold separately.
* Requires the 2018 and later Legends configuration of Yamaha FZ-09 / MT-09 (water-cooled) engine and Get brand ECU. The MXm wiring harness connects directly to the J20 diagnostic connector and the 6-pin Sumitomo connector on the ECU harness. Not compatible with earlier XJ1250 or FJ1200-engined (air-cooled) cars.
