Van Diemen Floating Disc Drive Bolt for PFC Rotors, each

Price Reduced!

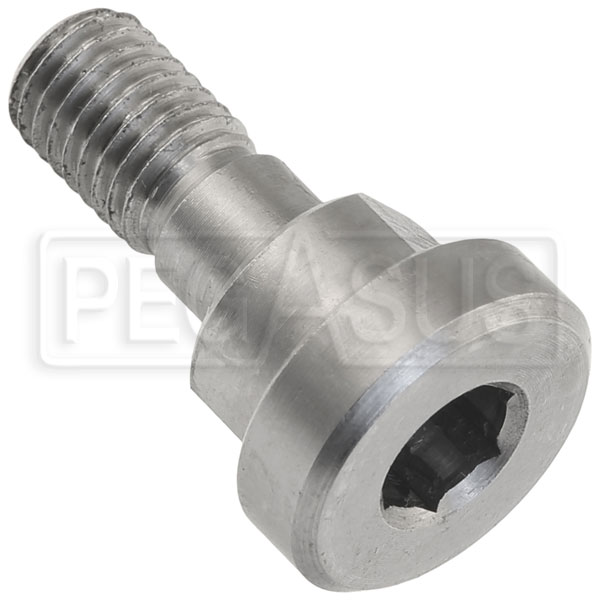

Click for a larger picture of Van Diemen Floating Disc Drive Bolt for PFC Rotors, each
Was $16.99 - Now only $12.99 - a 23% reduction!

This special bolt is used to attach the floating brake disc to the hub on late-model Van Diemen FF1600, FC, and FF2000 cars. 1/4" fine threads on one end accept a 1/4-28 MS21042 Jetnut (Part No. MS21042-4, sold separately). Each disc requires 6 bolts. Sold individually.

These bolts fit the standard Van Diemen hub and Performance Friction rotors (PFC part nos. 255-100042-03 and PF255-100042-04). Note that these rotors are no longer available from PFC.

This bolt is not a good fit in the Campbell rotors (Part Nos. 3545-33 and -34).

Tech Tip: When installing floating rotors, do not tighten any of the hardware until all bolts and nuts are in place. Try to position each bolt approximately in the center of its slot with the flats parallel to the sides of the slot. Tighten each one a little, then move on to the next one. This may take several times around the rotor before everything is tight. If you tighten the hardware unevenly, or install a bolt at one end of its slot, the rotor will bind and may not be able to float in any direction.

Part No.
Stock Status

Condition: New

In Stock
