AiM Full Harness for SmartyCam3 Dual

Brand: AIM Sports

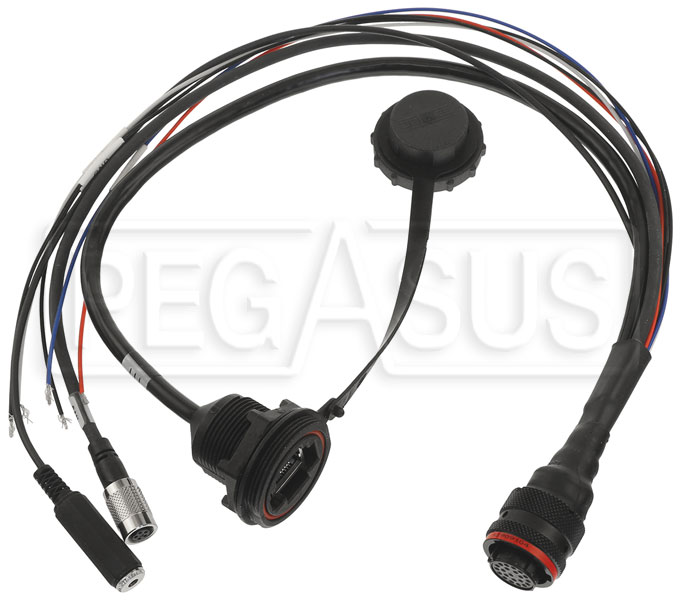

This special wiring harness adds an external microphone jack and Ethernet connectivity to the AiM SmartyCam 3 Dual In-Car Video Camera System. The standard harness included with the SMC3 Dual kit does not have a provision for an Ethernet connection or an external microphone.

One end of the harness has a 22-pin Deutsch female connector. The other end has one 5-pin "712" (screw-together) female connector for CAN connection, a panel-mount female Ethernet connector, a female 3.5mm microphone jack, and 5 unterminated wires:
Red: 9-15V Power In
Black: GND
White: ECU CAN +
Blue: ECU CAN-
Black: GND

Sold individually. Each SmartyCam 3 Dual system requires one harness.

For SmartyCam 3 Dual only. This harness does not work with any other camera or AiM device.
