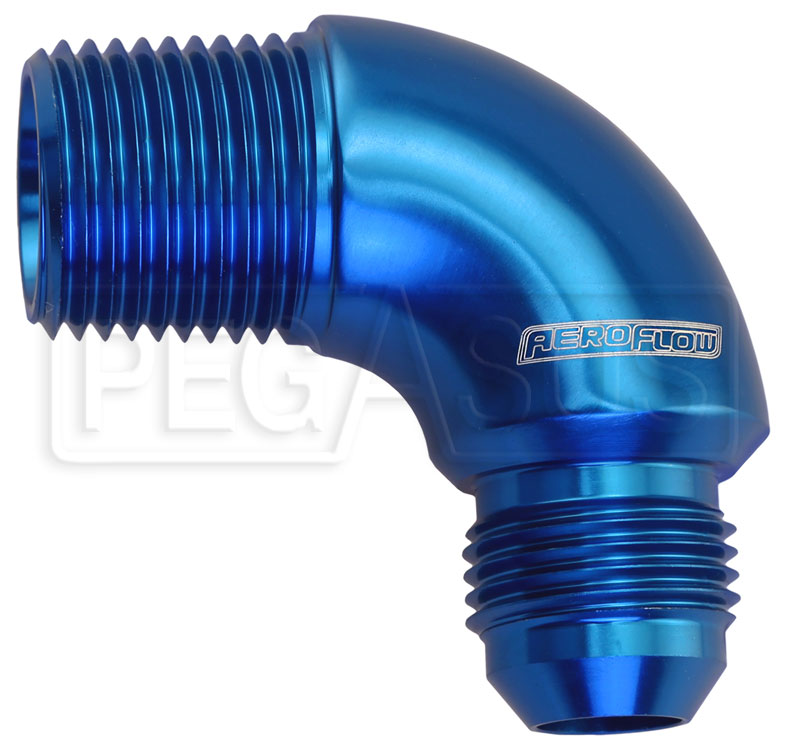

1/2 NPT Male to 8AN Male 90° Full Flow Elbow, Blue Alum

This aluminum adapter has a gentle radius and a large ID to reduce the flow restriction inherent in the AN822-Style 90 Degree NPT to AN Adapters (Part No. 3253). One end has a standard male NPT (National Pipe Thread) tapered thread, and the other has a male AN (SAE UNF threads, 37° convex flare). Blue anodized aluminum. Sold individually.

Note: The AN side must seal at the AN flare, it does nothave a hex to seal with an O-ring or crush washer.

Also available:
AN822-Type Male NPT Pipe to Male AN Adapter 90 Degree Elbow, Part No. 3253

Note: NPT nomenclature can be confusing because the nominal size refers to the inside diameter of the pipe, not the outside diameter of the threads. If you are not sure what size you need, please check out our Guide to Using NPT Fittings.
