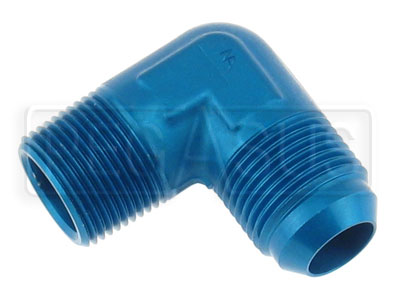

AN822 Male NPT Pipe to Male AN 90' Elbow

These AN822-style 90 degree elbow adapter fittings conform to JIC and SAE specifications. Each adapter has a standard male NPT (National Pipe Thread) tapered thread at one end and a male AN (SAE UNF threads, 37° convex flare) at the other. All fittings are blue anodized aluminum except where noted by a letter at the end of the part number:
S (e.g., 3253-02-03S) indicates plated Steel
C (e.g., 3253-04-03C) indicates Stainless Steel
A or no letter (e.g., 3253-04-04A, 3253-06-08) indicates blue anodized Aluminum

Fittings are sold individually. Anodizing and plating colors may vary from batch to batch.

Also available:
AN816 Male NPT Pipe to Male AN Straight Adapter, Part No. 3250
AN823 Male NPT Pipe to Male AN Adapter 45 Degree Elbow, Part No. 3251

Enter desired order quantities below, then click the "Add selected quantities to cart" button.

Order Qty

Part No.

Desc.

Price

Stock Status

1/8 NPT Male to AN Male 90° Elbow

3253-02-03C
Condition: New
SKU: 76072

1/8 NPT Male - 3AN Stainless Steel 90' Elbow

1 to 5: $19.64 6 & up: $18.54

In Stock

3253-02-03S
Condition: New
SKU: 28711

1/8 NPT Male - 3AN Steel 90' Elbow

1 to 7: $5.54 8 & up: $5.08

In Stock

3253-02-04A
Condition: New
SKU: 28712

1/8 NPT Male - 4AN Aluminum 90' Elbow

1 to 7: $9.69 8 & up: $8.89

In Stock

3253-02-04C
Condition: New
SKU: 76073

1/8 NPT Male - 4AN Stainless Steel 90' Elbow

1 to 5: $19.44 6 & up: $18.35

In Stock

3253-02-04S
Condition: New
SKU: 28713

1/8 NPT Male - 4AN Steel 90' Elbow

1 to 7: $5.69 8 & up: $5.22

In Stock

3253-02-06
Condition: New
SKU: 28714

1/8 NPT Male - 6AN Aluminum 90' Elbow

1 to 5: $12.19 6 & up: $11.18

In Stock

1/4 NPT Male to AN Male 90° Elbow

3253-04-03C
Condition: New
SKU: 76074

1/4 NPT Male - 3AN Stainless Steel 90' Elbow

1 to 5: $22.29 6 & up: $21.03

In Stock

3253-04-04A
Condition: New
SKU: 28715

1/4 NPT Male - 4AN Aluminum 90' Elbow

1 to 5: $10.69 6 to 35: $9.80 36 & up: $8.92

In Stock

3253-04-04C
Condition: New
SKU: 76075

1/4 NPT Male - 4AN Stainless Steel 90' Elbow

1 to 5: $21.99 6 & up: $20.16

In Stock

3253-04-04S
Condition: New
SKU: 28716

1/4 NPT Male - 4AN Steel 90' Elbow

1 to 7: $7.34 8 & up: $6.73

In Stock

3253-04-06
Condition: New
SKU: 28717

1/4 NPT Male - 6AN Aluminum 90' Elbow

1 to 5: $11.79 6 & up: $10.81

In Stock

3253-04-08
Condition: New
SKU: 28718

1/4 NPT Male - 8AN Aluminum 90' Elbow

1 to 5: $18.09 6 & up: $16.59

In Stock

3/8 NPT Male to AN Male 90° Elbow

3253-06-06
Condition: New
SKU: 28719

3/8 NPT Male - 6AN Aluminum 90' Elbow

1 to 5: $14.44 6 & up: $13.24

In Stock

3253-06-08
Condition: New
SKU: 28720

3/8 NPT Male - 8AN Aluminum 90' Elbow

1 to 5: $16.29 6 & up: $14.94

In Stock

1/2 NPT Male to AN Male 90° Elbow

3253-08-08
Condition: New
SKU: 28721

1/2 NPT Male - 8AN Aluminum 90' Elbow

1 to 5: $20.69 6 & up: $18.97

In Stock

3253-08-10
Condition: New
SKU: 28722

1/2 NPT Male - 10AN Aluminum 90' Elbow

1 to 5: $21.29 6 & up: $19.52

In Stock

3253-08-12
Condition: New
SKU: 43943

1/2 NPT Male - 12AN Aluminum 90' Elbow

1 to 5: $29.29 6 & up: $26.85

In Stock

3/4 NPT Male to AN Male 90° Elbow

3253-12-12
Condition: New
SKU: 28723

3/4 NPT Male - 12AN Aluminum 90' Elbow

1 to 5: $27.39 6 & up: $25.11

In Stock

1 NPT Male to AN Male 90° Elbow

3253-16-16
Condition: New
SKU: 28724

1 inch NPT Male - 16AN Aluminum 90' Elbow

1 to 4: $42.39 5 & up: $38.86

In Stock
