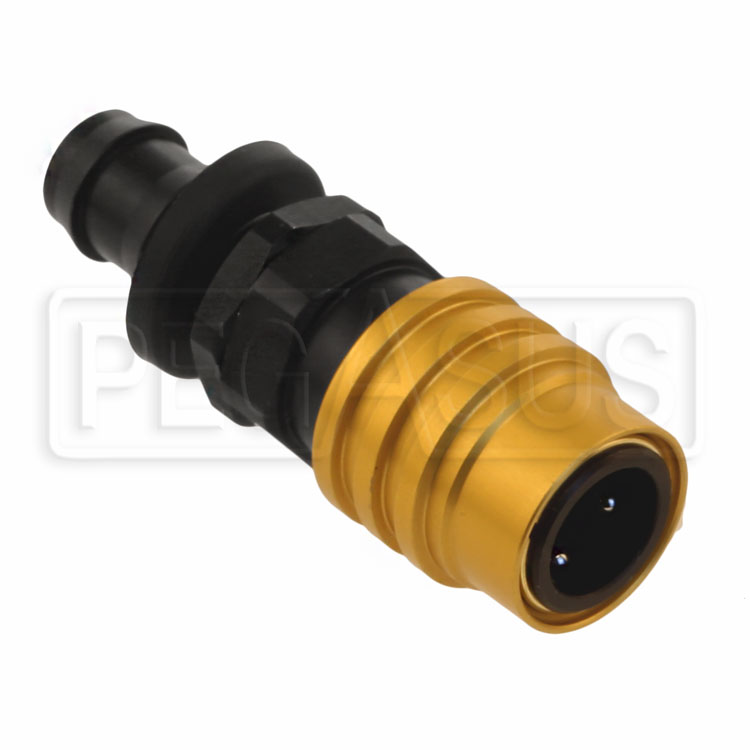

Quick-Disconnect Socket to 1/2" Push-Lock Hose Barb, EPDM

Brand: Jiffy-tite

Jiffy-tite 3000 series fittings will flow 4.34 GPM with a 5 psi inlet pressure through a mated pair of valved fittings attached to 2 feet of -8 hose.
This fitting is valved; non-valved fittings are noted with an "A". The barbed end is designed to accept 1/2" ID rubber hose such as Aeroquip Socketless, Earl's Super Stock, or Gates Barricade (not for use with stainless-braided or PTFE-lined hose).

Jiffy-Tite 3000 Series Sockets such as this one will mate to any Jiffy-Tite 3000 Series Plug. They will not mate to the 2000 or 5000 series plugs.

Check out these features:

• EPDM seals are resistant to glycol-based coolant. Standard fluorocarbon seals are also available for fuel and oil use, and Buna-N seals are available for alcohol fuel use.
• 100% leak tested.
• Patented design.
• Lightweight.
• Compact, yet feature high-flow capacity.
• Excellent wear resistance.
• Good-looking black and gold anodized finish.
• Completely Rebuildable.
• Durable 6061-T6 aluminum bodies and brass valves.
• 200psi maximum operating pressure.
