AiM XLog Extra Small Data Logger, 2M CAN/RS232 Cable

Brand: AIM Sports

This item qualifies for FREE Shipping in the continental United States!

Measuring less than 3" x 2.75" x 1.25" (72mm x 65mm x 30mm), the XLog is one of the most compact data loggers ever produced by AiM... and yet, it is every bit as capable and expandable as the most powerful AiM systems!

This XLog kit includes a special cable designed to connect to your ECU via CAN or RS232 wiring (this generally includes racing and aftermarket ECUs, plus some non-OBDII road vehicles). The XLog can communicate with the same extensive list of OEM and racing ECUs as other AiM systems. An internal 25 Hz GPS/GLONASS satellite receiver calculates and logs position, speed, and acceleration in 3 axes. You can also add any of the CAN expasions that you would use with other AiM systems. Add a Data Hub to connect Lambda, SmartyCam, and even ACC2 sensor hubs to build this little powerhouse into a full-function data logger!

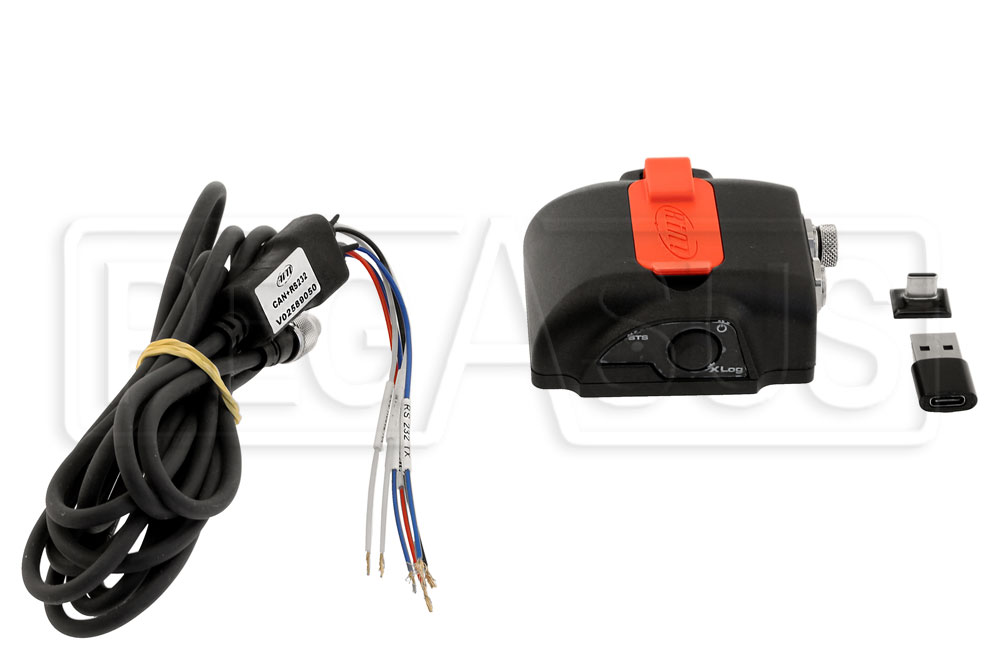

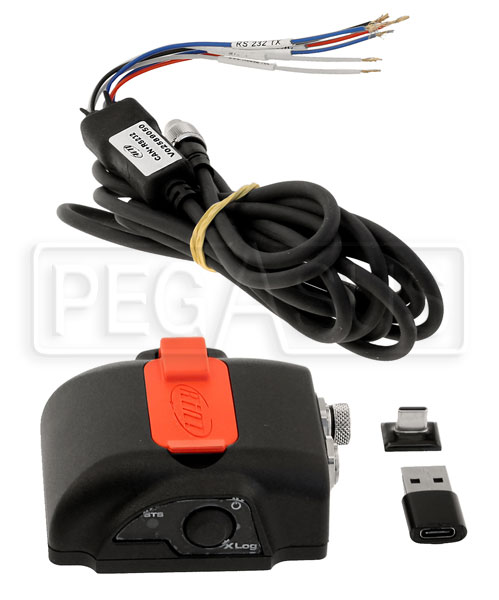

Two 712-type (screw-in) Binder ports provide connection for your ECU (CAN, K-Line, or RS232) and CAN Expansion. This version includes a 2 meter (6.5 ft) ECU cable with an 8-pin 712 connector at one end and unterminated wires for CAN+, CAN-, RS232TX, RS232RX, Power, and Ground connections. In addition to a large 4GB internal memory, a removable 16GB USB-C memory card is also included. Weighs approximately 150g (5.3 oz). CAN expansions sold separately.

Qty
Part No.
Price
Stock Status
MC-8821

Condition: New

$633.00
In Stock
