AiM XLog Extra Small Data Logger, 2M RPM Cable

Brand: AIM Sports

Measuring less than 3" x 2.75" x 1.25" (72mm x 65mm x 30mm), the XLog is one of the most compact data loggers ever produced by AiM... and yet, it is every bit as capable and expandable as the most powerful AiM systems!

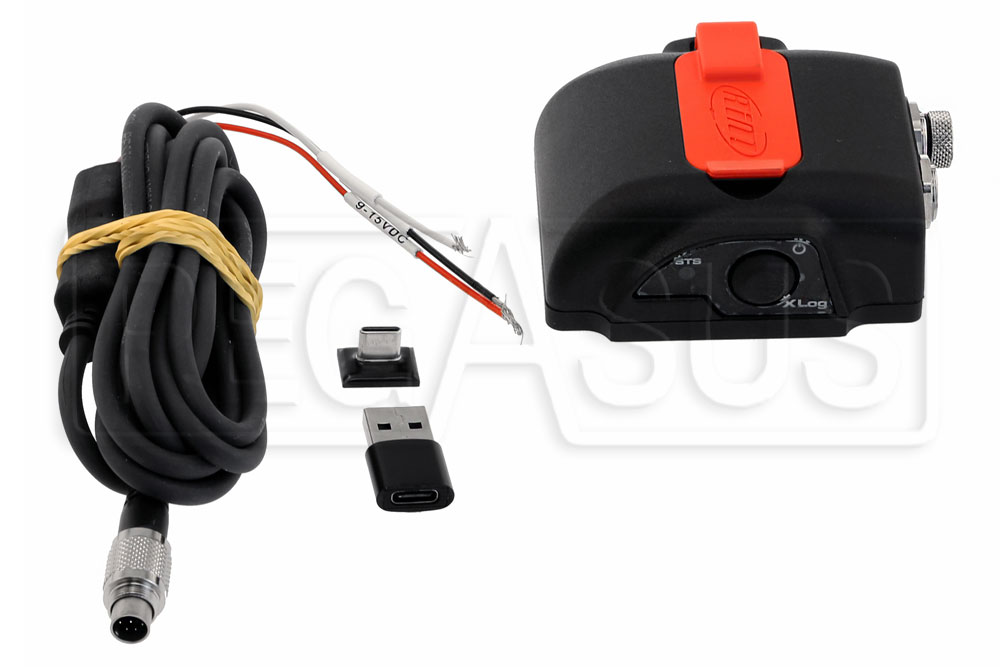

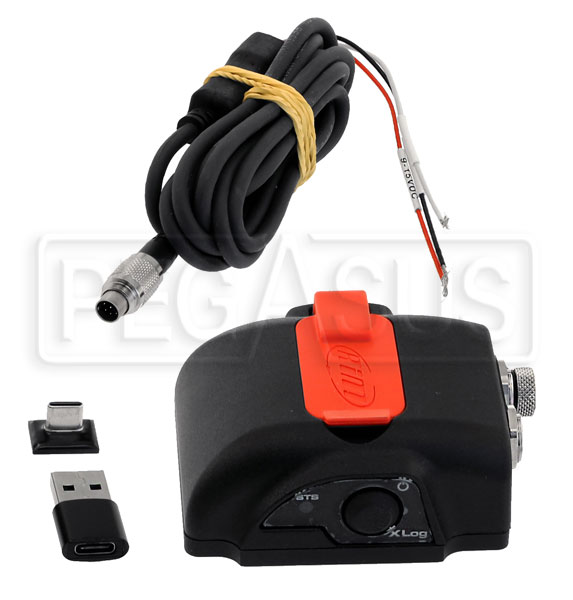

This XLog kit includes a special cable designed to connect to the RPM signal on your ignition system (perfect for just about any vehicle without an ECU, or with the rare ECU that is not on the extensive list of OEM and racing ECUs that AiM systems can understand).* An internal 25 Hz GPS/GLONASS satellite receiver calculates and logs position, speed, and acceleration in 3 axes. You can also add any of the CAN expasions that you would use with other AiM systems. Add a Data Hub to connect Lambda, SmartyCam, and even ACC2 sensor hubs to build this little powerhouse into a full-function data logger!

Two 712-type (screw-in) Binder ports provide connection for your ECU (CAN, K-Line, or RS232) and CAN Expansion. This version includes a 2 meter (6.5 ft) ECU cable with an 8-pin 712 connector at one end and unterminated wires for RPM, Power, and Ground connections.* In addition to a large 4GB internal memory, a removable 16GB USB-C memory card is also included. Weighs approximately 150g (5.3 oz). CAN expansions sold separately.

* Although this kit includes the RPM-only cable, the XLog in the kit could still connect to an ECU by swapping the input cable and changing the configuration file in Race Studio 3.
