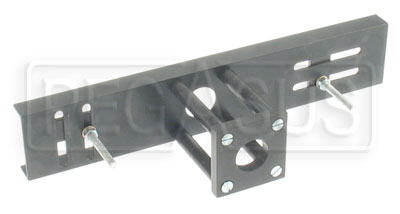

Internal Hydraulic Clutch Release Bearing Tester

Click for a larger picture of Internal Hydraulic Clutch Release Bearing Tester
View Catalog Page in PDF format

Don't waste time installing your transaxle only to find out too late that your hydraulic release bearing is leaking! Check it first with our Hydraulic Release Bearing Tester. This truly universal tool has been tested to work on FT200, LD200, Mk-series, and Staffs gearboxes. A wide range of adjustments will allow it to fit many other applications.

Simply bolt it to the front of your transmission with the stop plate adjusted about 1/4" away from the release bearing. Connect your clutch hydraulic line, bleed the system, and apply moderate pressure to the clutch pedal while watching for leaks. This slick tool could pay for itself the first time you discover a leak before assembly. Machined from black anodized aluminum, with hardware included.

Hint: This tool can also help find any lost motion in an external clutch slave application! With all parts in the linkage exposed, you will be able to see exactly where any flex is occurring.

Part No.
Stock Status

Condition: New

Not In Stock
notify me when available
