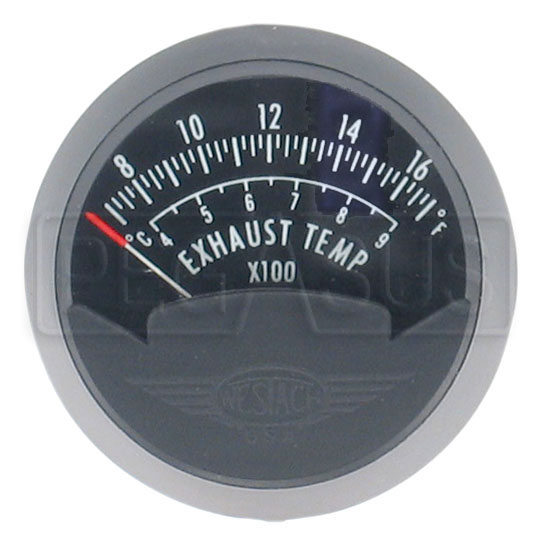

Single EGT Gauge, 2 1/16in, 700 - 1700F

Click for a larger picture of Single EGT Gauge, 2 1/16in, 700 - 1700F
View Catalog Page in PDF format

Our self-powered single EGT gauge displays exhaust gas temperature from 700°F to 1700°F without requiring a hookup to vehicle power. The difference in temperature between the probe tip and the end of the probe cable* generates a small voltage, which moves the gauge needle.

This 2 1/16" diameter gauge includes an 18" long sensor harness. When mated to a probe with the standard 44" cable, the gauge can be mounted up to 62" from the probe. Extension cables (available separately) can be used for installations requiring more distance between the probe and the gauge.

Note: Requires one EGT Probe for 1" - 1.75" Tubes (Part No. 1080) or EGT Probe for 1.62 - 2.5" Tubes (Part No. 1084), sold separately.

* This gauge is calibrated for use at 70°F ambient temperature. The gauge will read higher in cold weather and lower in hot weather. For example, on a 100 degree day the gauge will read 30° low. On a 50 degree day, the gauge will read 20° high. We can special-order a version calibrated at 32°F for use on snowmobiles; please contact us for details.

Qty
Part No.
Price
Stock Status
1081
$74.99
In Stock
