AiM Brake Pedal Position Sensor, Linear Travel Pot (Auto)

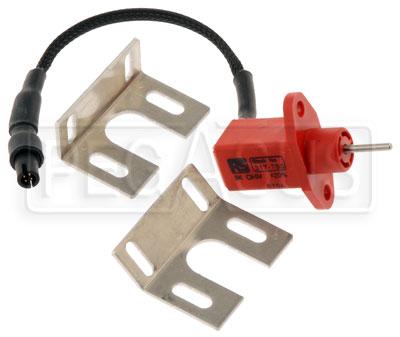

Click for a larger picture of AiM Brake Pedal Position Sensor, Linear Travel Pot (Auto)
View Catalog Page in PDF format

Brand: AIM Sports

This displacement potentiometer can measure up to 10mm (3/8") of linear travel, which makes it ideal for measuring brake pedal movement. A pedal travel sensor such as this can be simpler to install in many vehicles than plumbing a pressure sensor in the brake line.

We recommend mounting the sensor in front of the brake pedal (between the driver and the pedal) so the sensor is depressed when the brakes are off. This will reduce the likelihood of sensor damage or interference with pedal travel in the event of brake fade. The sensor should be mounted close to the pedal pivot, and at an angle that minimizes side loading on the plunger.

The compact sensor body measures just 3/4" (19mm) OD x 1 3/8" (35mm) long overall (less plunger). Two 1/4" (6mm) mounting holes are located 1.34" (34mm) center-to-center.

This sensor has a 200mm (7 3/4") long cable with the 719 (four-pin plastic push-on type) connector. Use a My Chron 719-719 Patch Cable (Part No. MC-211) to connect to an AiM MXL Pista, MXL Pro, MXL2, MXG, MXS, or MyChron3 Auto dash (except XG-Log). XG-Log and EVO4 require a 712-719 Patch Cable (Part No. MC-210) for connection.

Part No.
Stock Status

Condition: New

In Stock
