OBP Firewall Mount 2-Pedal Assembly, w/o MC
|This item qualifies for FREE Shipping in the continental United States!|

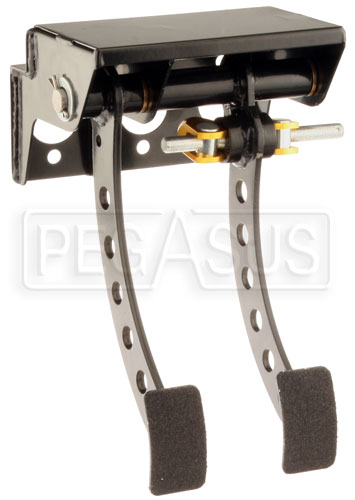

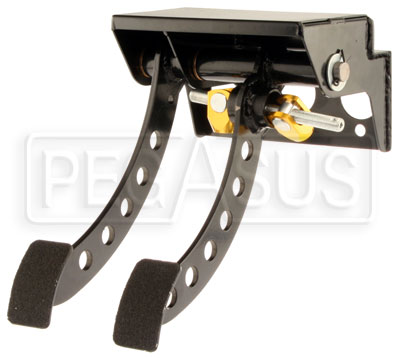

The Pro-Race 2-pedal firewall-mount pedal box is simple to install and suitable for a wide range of applications. The lightweight steel assembly includes Clutch, Brake, and Throttle pedals in one unit. Both pedals ride on oil-impregnated bushings for smooth, consistent operation and long life. Both pedals also feature pre-applied friction material for traction. The firewall mounting is the "conventional" configuration, positioning the master cylinders in the engine compartment.
Clutch pedal: For hydraulic applications.
Brake pedal: For dual master cylinder systems. Includes a built-in bias bar (7/16" thread, accepts standard 5/16" pushrods).
Weighs 5.8 lbs without master cylinders. Measures 7 3/4" Wide x 13" High at pedals x 5 9/16" Deep without master cylinders. Accepts master cylinders with the common 2-bolt vertical (2 1/4") mounting pattern. Master cylinders and remote bias adjuster cable sold separately.
