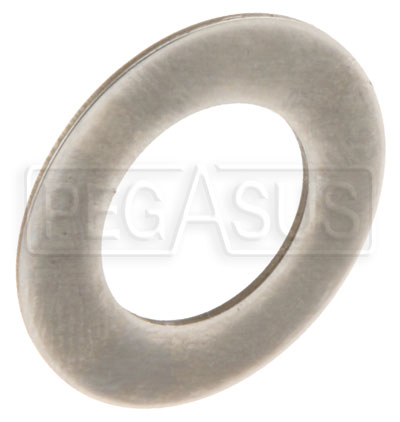

In order to achieve maximum rated capacity and life of Nadella bearings, the mating and mounting surfaces should have a smooth, hard finish. These thrust washers have been engineered to provide the proper hardness and finish for support in the axial direction.
These thin (0.8mm thickness) washers are recommended for use in installations that will not see heavy thrust loads, when the backing structure is a harder material (steel, cast iron, etc), or where packaging concerns will not allow the use of the 2mm Thick Thrust Washers (Part No. 3082). The thicker thrust washers are recommended for the heavily-loaded side of an assembly, or where the backing structure is a softer material such as magnesium or cast aluminum.
|Nadella Thrust Washer Dimensions|
|Inside Diameter||Outside Diameter|
