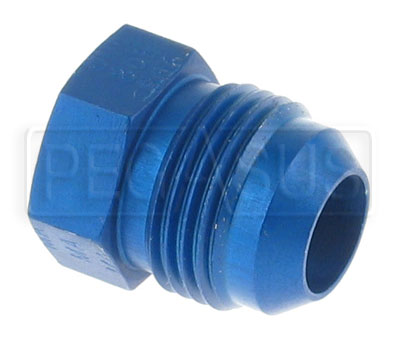

AN806 Aluminum AN Flare Plug

These AN806-style fittings conform to JIC and SAE J514 specifications. The anodized aluminum plug will hold moderate pressure (up to 200 psi) when properly installed.

AN806 Specifications
Dash Size	Thread Size	Hex Size	Part Number
3AN	3/8-24	7/16"	3233-03
4AN	7/16-20	1/2"	3233-04
6AN	9/16-18	5/8"	3233-06
8AN	3/4-16	13/16"	3233-08
10AN	7/8-14	15/16"	3233-10
12AN	1 1/16-12	1 1/8"	3233-12
16AN	1 5/16-12	1 1/4"	3233-16
20AN	1 5/8-12	1 11/16"	3233-20

Note that the hex size on these plugs is as small as possible to fit in tight installations. The hex is not large enough to support an O-ring or sealing washer. This plug style must seal at the 37° flare.

Installations without a 37° AN sealing flare (such as O-ring ports) should use our AN814-Style Aluminum Port Plugs, Part No. 3228-128. Port Plugs have a much larger hex to support an O-ring or crush washer against a chamfered or flat-faced port.

Enter desired order quantities below, then click the "Add selected quantities to cart" button.

Order Qty

Part No.

Desc.

Price

Status

3233-03
Condition: New
SKU: 28589

Aluminum Flare Plug, 3AN (3/8 - 24)

1 to 9: $2.79 10 & up: $2.49

In Stock

3233-04
Condition: New
SKU: 28590

Aluminum Flare Plug, 4AN (7/16 - 20)

1 to 9: $2.79 10 & up: $2.49

In Stock

3233-06
Condition: New
SKU: 28591

Aluminum Flare Plug, 6AN (9/16 - 18)

1 to 9: $2.99 10 & up: $2.67

In Stock

3233-08
Condition: New
SKU: 28592

Aluminum Flare Plug, 8AN (3/4 - 16)

1 to 7: $4.29 8 to 59: $3.85 60 & up: $3.40

In Stock

3233-10
Condition: New
SKU: 28593

Aluminum Flare Plug, 10AN (7/8 - 14)

1 to 7: $4.79 8 & up: $4.30

In Stock

3233-12
Condition: New
SKU: 28594

Aluminum Flare Plug, 12AN (1-1/16 - 12)

1 to 7: $7.49 8 & up: $6.76

In Stock

3233-16
Condition: New
SKU: 28595

Aluminum Flare Plug, 16AN (1-5/16 - 12)

1 to 7: $9.49 8 & up: $8.58

In Stock

3233-20
Condition: New
SKU: 85061

Aluminum Flare Plug, 20AN (1-5/8 - 12)

1 to 5: $17.99 6 & up: $16.41

In Stock
