Part No.: 3473-Size

Push-Pull Cable with 1 Bulkhead, 1 Clip-in End

These heavy-duty cables are often used on adjustable sway bars, but they also work very well as shifter cables. Their operation is so smooth, some of our customers even use them as throttle cables.

One end of the housing is grooved (1/4" / 6mm OD) for easy clip-in attachment. This provides a compact and lightweight means of mounting with either our Bolt-Down Housing Clamp (Part No. 3464) or Quick-Release Housing Clamp (Part No. 3465). The other end is threaded (7/16-20) and includes two jam nuts for easy bulkhead installation with approximately 3/4 inch of adjustment. These cables have a working load rating of 60 pounds in compression and 120 pounds in tension. Length is measured from end-to-end of the inner cable including the threaded ends. Housing clamps sold separately.

Standard Dimensions for Push-Pull Cables
Thread10-32
Housing Groove to Cable End (min) 5 1/4"
Housing Groove to Cable End (max) 8 1/4"
Bulkhead Mount (middle of thread) to Cable End (min) 6"
Bulkhead Mount (middle of thread) to Cable End (max) 9"
Travel3"
Housing Groove to End of Jacket 4 5/16"
Bulkhead Mount (middle of thread) to End of Jacket5"
All dimensions are +/- 1/4"

Click image for big picture

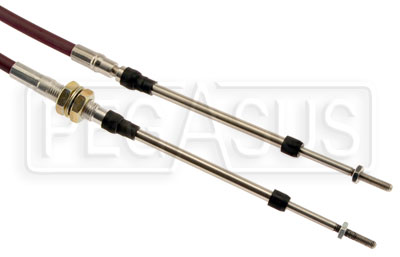

Click for a larger picture of Push-Pull Cable with 1 Bulkhead, 1 Clip-in End

Order Qty
Part Number
Description
Price
Status

3473-44

Push-Pull Cable with 1 Bulkhead, 1 Clip-in End, 44 inch $59.99 Not In Stock
notify me when available

3473-60

Push-Pull Cable with 1 Bulkhead, 1 Clip-in End, 60 inch $65.99 In Stock

3473-90

Push-Pull Cable with 1 Bulkhead, 1 Clip-in End, 90 inch $75.99 Not In Stock
notify me when available

3473-96

Push-Pull Cable with 1 Bulkhead, 1 Clip-in End, 96 inch $75.99 Not In Stock
notify me when available
