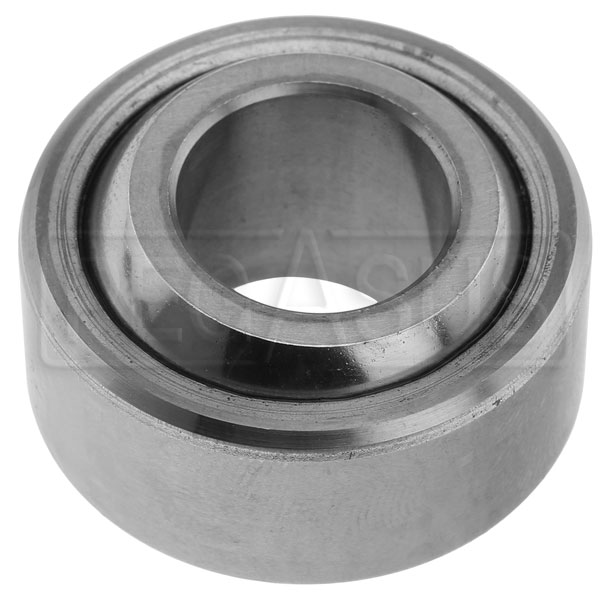

Aurora Spherical Bearing, Alloy Steel Race, PTFE lined

Brand: Aurora Bearing Company

Wear-resistant AIB-series bearings feature a heat-treated alloy steel race, coated on the ID and oil coated on the OD for corrosion resistance. The ball is constructed of heat treated and hard chrome plated alloy steel. A self-lubricating PTFE liner offers maintenance-free durability. Aurora AIB-T series.

These bearings are more expensive than the Aurora MIB Series Spherical Bearings, but the alloy steel race gives them a 50% higher static radial load rating than the MIB Series.

AIB Series PTFE Lined Spherical Bearing Specifications
Bore Size, Nominal	Bore Size +.0015"/ −.0005"	Outside Dia +.0000"/ −.0007"	Ball Width +.000"/ −.005"	Race Width +∕‑.010"	Misalignment Angle	Static Radial Load Rating, lb	Part Number
1/4"	0.2500"	0.6094"	0.375"	0.281"	14.5°	8430	AB−AIBT−4
5/16"	0.3125"	0.7500"	0.437"	0.344"	11.0°	12,900	AB−AIBT−5
3/8"	0.3750"	0.8437"	0.500"	0.406"	9.5°	17,516	AB−AIBT−6
7/16"	0.4375"	1.0000"	0.562"	0.437"	11.0°	21,290	AB−AIBT−7
1/2"	0.5000"	1.0937"	0.625"	0.500"	9.5°	28,110	AB−AIBT−8
5/8"	0.6250"	1.3125"	0.750"	0.562"	12.0°	37,935	AB−AIBT−10
3/4"	0.7500"	1.5000"	0.875"	0.687"	10.0°	48,672	AB−AIBT−12
7/8"	0.8750"	1.6250"	0.875"	0.750"	6.0°	58,653	AB−AIBT−14
1"	1.0000" *	2.1250"	1.375"	1.000"	15.0°	90,000	AB−AIBT−16
* Bore tolerance on this size is +.0035" / −.0005".

Enter desired order quantities below, then click the "Add selected quantities to cart" button.

Order Qty

Part No.

Desc.

Price

Stock Status

AB-AIBT-4
Condition: New
SKU: 75784

Alloy Steel Race Spherical Bearing, PTFE lined, .250 x .609

1 to 5: $24.19 6 & up: $22.83

In Stock

AB-AIBT-5
Condition: New
SKU: 75785

Alloy Steel Race Spherical Bearing, PTFE lined, .312 x .750

1 to 5: $25.09 6 & up: $23.70

In Stock

AB-AIBT-8
Condition: New
SKU: 75786

Alloy Steel Race Spherical Bearing, PTFE lined, .500 x 1.093

1 to 4: $40.59 5 & up: $38.50

In Stock

AB-AIBT-10
Condition: New
SKU: 75787

Alloy Steel Race Spherical Bearing, PTFE lined, .625 x 1.312

1 to 4: $33.19 5 & up: $31.43

In Stock

AB-AIBT-12
Condition: New
SKU: 75788

Alloy Steel Race Spherical Bearing, PTFE lined, .750 x 1.500

1 to 4: $48.39 5 & up: $45.98

In Stock

AB-AIBT-14
Condition: New
SKU: 75783

Alloy Steel Race Spherical Bearing, PTFE lined, .875 x 1.625

1 to 4: $91.99 5 & up: $87.89

In Stock

AB-AIBT-16
Condition: New
SKU: 75789

Alloy Steel Race Spherical Bearing, PTFE lined, 1.00 x 2.125

1 to 3: $125.39 4 & up: $120.03

In Stock
