Part No.: AB-PRMT-Size-Color

Performance Racing Series Male Rod End, PTFE Lined

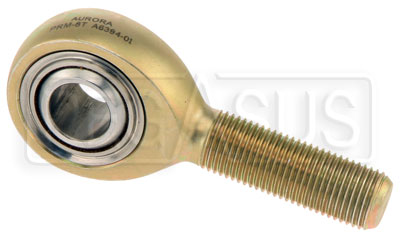

These male rod ends provide excellent strength and safety for racing applications. The housing is made from heat treated 4340 alloy steel, with a PTFE-lined, heat-treated stainless steel race. The ball is heat treated and hard chrome plated alloy steel or stainless steel (manufacturer's choice). The housing is coated for corrosion resistance. These bearings feature low breakaway torque (1 to 15 inch-pounds) for minimal effect on handling. Male threaded shanks only. Typical male rod end shown in photo. Aurora PRM (right hand threads) and PRB (left hand threads) series.

PTFE Lined Performance Racing Male Rod Ends
Bore Thread
(UNF)
Thread
Length
Center of Bore
to End of Shank
Radial Load Rating
(Pounds)
Part No.
5/16" 5/16-24 1 3/16" 1 7/8" 8330 AB-PRMT-5-L or -R
3/8" 3/8-24 1 3/16" 1 15/16" 10,946 AB-PRMT-6-L or -R
7/16" 7/16-20 1 9/32" 2 1/8" 14,049 AB-PRMT-7-L or -R
1/2" 1/2-20 1 15/32" 2 7/16" 23,310 AB-PRMT-8-L or -R
5/8" 5/8-18 1 5/8" 2 5/8" 25,909 AB-PRMT-10-L or -R
3/4" 3/4-16 1 11/16" 2 7/8" 34,319 AB-PRMT-12-L or -R


pdf icon Full Specifications for Part No. AB-PRMT Rod Ends (PDF format)

Click image for big picture

Click for a larger picture of Performance Racing Series Male Rod End, PTFE Lined


View Catalog Page in PDF format

Order Qty
Part Number
Description
Price
Status

AB-PRMT-5-L

Alloy Steel Rod End, 5/16 Bore x 5/16-24 Left Hand Male Thrd
1 to 4: $44.99
5 & up: $43.04
In Stock

AB-PRMT-5-R

Alloy Steel Rod End, 5/16 Bore x 5/16-24 Rt Hand Male Thread
1 to 4: $44.99
5 & up: $43.04
In Stock

AB-PRMT-6-L

Alloy Steel Rod End, 3/8 Bore x 3/8-24 Left Hand Male Thread
1 to 4: $51.99
5 & up: $49.71
In Stock

AB-PRMT-6-R

Alloy Steel Rod End, 3/8 Bore x 3/8-24 Rt Hand Male Thread
1 to 4: $51.99
5 & up: $49.71
In Stock

AB-PRMT-7-L

Alloy Steel Rod End, 7/16 Bore x 7/16-20 Left Hand Male Thrd
1 to 4: $57.99
5 & up: $55.44
In Stock

AB-PRMT-7-R

Alloy Steel Rod End, 7/16 Bore x 7/16-20 Rt Hand Male Thread
1 to 4: $57.99
5 & up: $55.44
In Stock

AB-PRMT-8-L

Alloy Steel Rod End, 1/2 Bore x 1/2-20 Left Hand Male Thread
1 to 4: $69.99
5 & up: $66.18
In Stock

AB-PRMT-8-R

Alloy Steel Rod End, 1/2 Bore x 1/2-20 Rt Hand Male Thread
1 to 4: $69.99
5 & up: $66.18
In Stock

AB-PRMT-10-L

Alloy Steel Rod End, 5/8 Bore x 5/8-18 Left Hand Male Thread
1 to 4: $89.99
5 & up: $86.23
In Stock

AB-PRMT-10-R

Alloy Steel Rod End, 5/8 Bore x 5/8-18 Rt Hand Male Thread
1 to 4: $89.99
5 & up: $86.23
In Stock

AB-PRMT-12-L

Alloy Steel Rod End, 3/4 Bore x 3/4-16 Left Hand Male Thread
1 to 3: $105.99
4 & up: $101.38
In Stock

AB-PRMT-12-R

Alloy Steel Rod End, 3/4 Bore x 3/4-16 Rt Hand Male Thread
1 to 3: $105.99
4 & up: $101.38
In Stock
